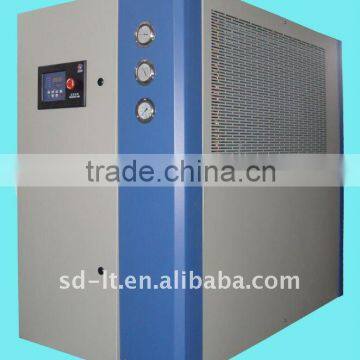

Water Cooled Chillers(9kw-150kw) with Scroll Compressors

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Chiller
Place of Origin	Shandong, China	Brand Name	LYTTE OR OEM
Model Number	LT-LSQ--WATER CHILLER	Operating Voltage	Other, 3P-AC380V-50HZ
Mounting	Floor Standing	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Water Cooled Chiller, Water Chiller
1.Strict test&inspection
2.CE,CRAA
3.Famous Compressor
4.Complete safety protection

water chillers, chiller, water cooled chillers, water to water chiller

Advantage Features:

With scroll, or reciprocating compressor of high quality, high efficient heat exchangers, excellent system design, by excellent process, the chillers is of suffient capacity and efficiency.
The chillers will work stably for long time period as they are produced by excellent process, composed of reliable control components and professional control procedure.
Complete safety protection:
a.High&low pressure protection, pressure safety value protection
b.Overload protection to the compressor
c.Power supply protect for phase lack, counter phase, voltage too high and voltage deficient

d.Water system protection for freezing breaking, water lack etc.

System Features:

Ready to work after connected to cooling tower, chilled water and cooling water system
A stainless steel water vessel, a low noise pump have been fixed inside the chiller
The chillers of capacity below 50KW is movable by wheels with them
The chillers of capacity over 50KW are double refrigeration system design that is good to reduce the frequent start and stop for load change. The chillers can run even 1 system is in trouble.
Strict test and inspection has been made before the chillers are delivered.

MODEL		03WS	05WS	08WS	10WS	12WS	15WS	20WD	25WD	30WD	40WD
Cooling Capacity	KW	9.2	15.3	24.6	32.5	37.6	48.5	65	75.2	97	132.6
Cooling Capacity	10³kcal/hr	7.9	13.2	21.2	28	32.3	41.7	55.9	64.7	83.4	114
Power(kW)		2.4	3.8	5.7	7.2	8.2	11.6	14.4	16.4	23.3	29.8
Current(A)		4.5	8	11.4	14.7	16.7	25.9	29.5	33.7	50	54.9
Compressor	Quty(PCS)	1	1	1	1	1	1	2	2	2	2
	Power(KW)	2.06	3.23	4.92	6.46	7.47	10.13	12.9	14.9	20.3	27.6
	Current(A)	3.76	6.89	9.85	13.17	15.23	22.7	26.3	30.5	45.4	50.3
Refrigerant	Type	R22
Refrigerant	Control	Thermal expension valve
Pump	Type	Centrifugal pump
	Power(KW)	0.37	0.55	0.75	0.75	0.75	1.5	1.5	1.5	2.2	2.2
	Current(A)	0.75	1.1	1.5	1.5	1.5	3.2	3.2	3.2	4.6	4.6
	Pressure Head	15	20	22	20	17	25	24	18	22	22
Condenser	water pipe connection	DN25		DN40			DN50			DN65
Condenser	Water flow(L/min)	32.4	53.1	84.6	111.7	129.2	168	223.3	258.4	336.1	451.5
Evaporator	water pipe connection	DN25		DN40			DN50			DN65
Evaporator	Water flow(L/min)	26.5	43.9	70.5	93.2	107.8	139	186.3	215.6	278.1	380.1
Water Tank	Volume(L)	90	95	140	140	180	200	250	250	350	370
Water Tank	Fill,discharge,overflow port	DN20
Overall Size	(Length)mm	1050	1050	1420	1450	1520	1750	1850	1950	2150	2350
	(Width)mm	740	740	860	1090	860	950	950	950	1390	1100
	(Hight)mm	1100	1100	1100	850	1100	1190	1190	1190	1100	1440
Weight	KG	220	236	320	372	435	610	750	850	950	1050

Remark:1.Colling Condition:Chilled water in/out 12/7°C; cooling water in/out 30/35°C
2.Suitable chilled water temperature: 9-25°C
2.Power supply: 3P-380V-50HZ;with voltage allowance ±10%,voltage dif between the phase lines±2%;
3.The data above is for R22, contact us if that for R134a,R407c and other refrigerant need;
4.There may be Changes for improvement without notice, confirm always before your order.
