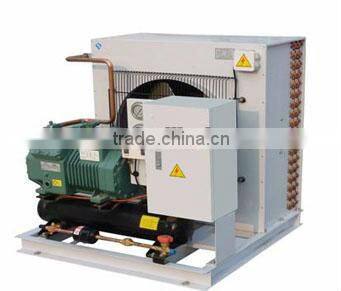

Bizter Compressor Low Noise Air Cooled Condensing Unit for Cold Room

Specifications

FNS Series Semi-Hermetic Low Noise Air CooledCondensing Units

(With Bitzer Piston Compressor)

Introduction&Features
-Utilized Semi-Hermetic Bitzer Refrigeration Compressors; Low Noise, Running Stable;
-Condenser utilized copper tube & aluminum fin type heat exchanger; Large heat exchange area and hidh efficiency;
-Adopted two-speed fans, which can adjust the fans speed according to the change of condensing pressure;

-Imported high-quality refrigeration parts to ensure full configuration and high reliability of operation;

-Schneider  Electric parts utilized on the units, having the functions of overload, phase failure, anti-frequent start, etc.
-Low Noise FNS Series air cooled condenser utilize on the units;
-Two Types: integral type and splt type.

Model Details:
1. Refrigerant: R22 Temperature:-5°C~ 5°C Models:FNS35/2EC3.2---FNS130/4PCS15.2(3HP-15HP)
2. Refrigerant: R22 Temperature:-20°C~ -18°C Models: FNS25/2CC3.2---FNS130/4G20.2(3HP-20HP)

Main Parts Instructions
Main Parts:  Semi-hermetic Bitzer Compressor     Crankcase heater   Air Cooled Condenser    Liquid storage device
  Filter     Liquid Sight Gauge     Hand Valve      Gas-liquid Separator High&Low Voltage Controller
  High&Low Pressure Gauge      Electronic Oil Pressure Diff     Electrical Box     Fan

                         Technical Data Sheet for FNS Series Semi-Hermetic Low Noise

                                                            Air Cooled Condensing Units

 Models Specifications
FNS55 /      4EC6.2     F

 Notes:FNS55:Air Cooled Condenser Code        4EC6.2:Compressor Model     Models Type: F(Split Type); ---(Integral Type )

1.Refrigerant:R22; Temperature: -5~5°C

 Design Working Condition:Evaporation Temperature -7°C;Environmental Temperature 35°C;Suction superheat 10°C.

  2.Refrigerant:R22; Temperature: -20~-18°C

Design Working Condition:Evaporation Temperature -23°C;Environmental Temperature 35°C;Suction superheat 10°C.
CIC is to be used for the evaporation temperature under -25°C for the units over 8HP;

  Integral Type: (FNS Condenser+Bitzer Compressor)

 Split Type

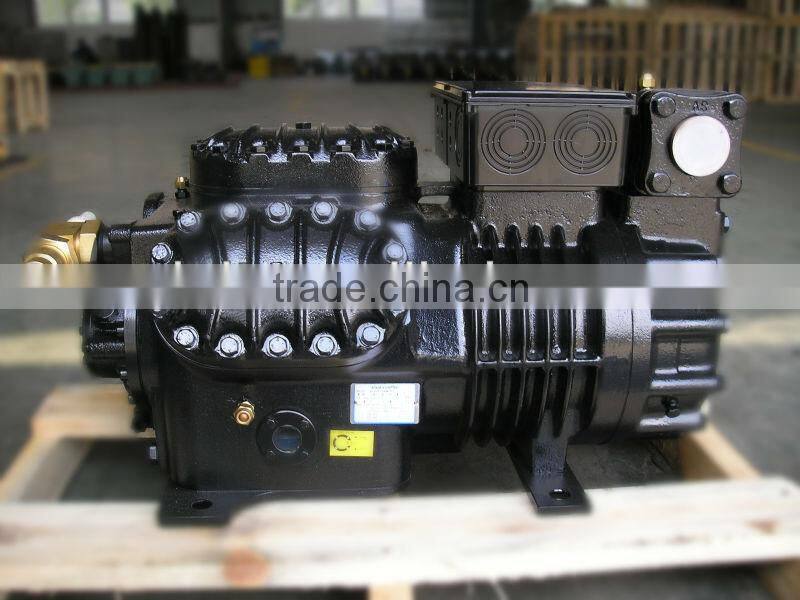

Bitzer  Compressor
