JZW Series Model Condensing Unit for Refrigeration Cold, Freezer Storage Rooms

Specifications

JZW Series Model Condensing Unit for Refrigeration Cold, Freezer Storage Rooms

-Condensing Units for Cold Storage Room, -5°C to 5°C for vegetables, fruits etc. storage

-Condensing Units for Freezer Storage Rooms, -20°C to -15°C for food as meat, aquatic products etc. storage.

Products Introduction:

This series products feature box type structure with scroll compressor, that is compact ans pleasant looking, applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are:-5°C~ 5°C and -20°C~ -15°C Cold and Freezer Rooms. They be used in hotels, restaurants, medicines, agricutureral, chemicals industries all other place where cold storage is needed.

Main Components:

-Brand refrigerant compressors as Copeland, Tecumseh, Bitzer etc. with high reliability are selected;

-Fan with 6 pole external rotor motors;

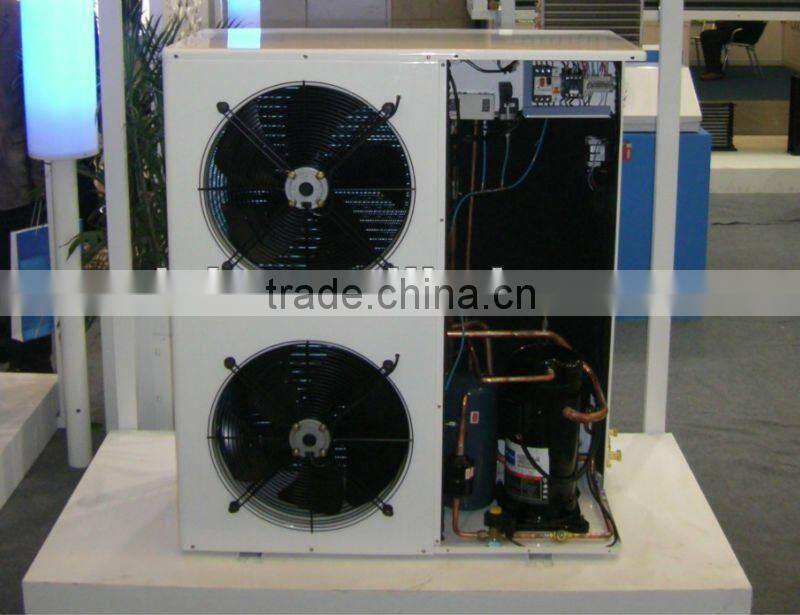

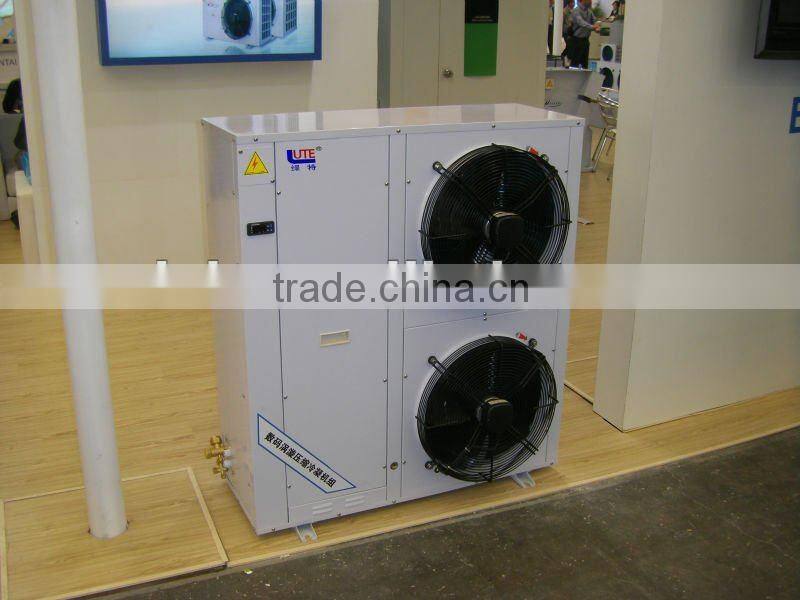

-For the unit with 2 fans, the condenser fans are automatically controlled;

-World famous brand refrigeration parts are employed for all products;

-Unit established by electrical control accessories, with the protection of lack of phase, overload, frequent start and high voltage.

Model Specifications:JZW   03   L   A   G   Y

JZW- LVTE Company Products Code 03- Compressor Power Input(HP)   L- Temperature: M:-5°C~ 5°C L:-20°C~ -15°C

A- Air Side Outlet G- Compressor Brand, T—Tecumseh; G—Copeland; B—Bitzer Y- Refrigerant: Y—R404a; Empty—R22

Model Details:

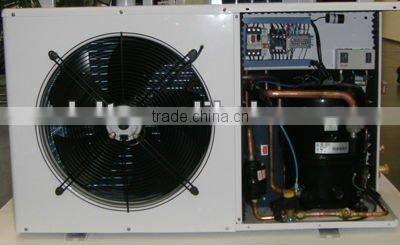

1) Units with Tecumseh Hermetic Compressor, R404a Units

a.Temperature:-5°C~ 5°C Models: JZW0.6MATY---JZW03MATY(0.6HP-3HP)

b.Temperature:-20°C~ -15°C Models: JZW01LATY---JZW03LATY(1HP-3HP)

2) Units with Copeland ZB Series Hermetic Scroll Compressor, R404a Units

a.Temperature:-5°C~ 5°C   Models: JZW02MAGY---JZW08MAGY(2HP-8HP)

b.Temperature:-20°C~ -15°C     Models: JZW02LAGY---JZW10LAGY(2HP-10HP)

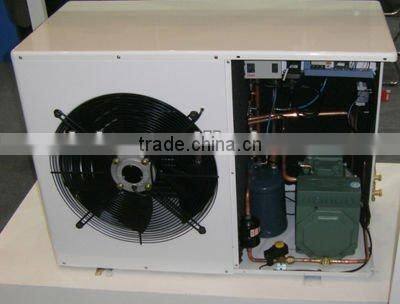

3) Units with Bitzer Semi Hermetic Compressor, R404a Units

a.Temperature:-5°C~ 5°C Models: JZW02MABY---JZW07MABY(2HP-7HP)

b.Temperature:-20°C~ -15°C     Models: JZW02LABY---JZW12LABY(2HP-12HP)
