Refrigeration System,Air Cooled Condenser for Condensing Units

Specifications

Air Cooled Condenser for Refrigeration Equipments

-FN Standard Models, Plate Air Cooled Condenser for Air Conditioning Refrigeration, Condensing Unit

-FNS Low Noise Models

-Air Side Outlet

Introduction

Air cooled condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments. Now we produce FN, FNS type and FNV type air cooled condenser, Air side outlet for FN&FNS type and Air top outlet for FNV type.

Features

1. The outcovering is made of high-quality steel plate with sprayed surface to ensure corrosion resistance, beautiful appearance;

2. Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;

3. Units adopted 2.8MPa air tightness test and system sewage discharge treatment;

4. Application for R22,R134a,R404a,R407C etc. refrigerant;

5. FNS condenser utilized large air volume and low speed internal motors with low noise,beautiful appearance; Application for refrigerant equipments which denmand high requirements of noise;

6. FNV condenser have the features of large windward side, high quality heat exchange; external rotor motors used.

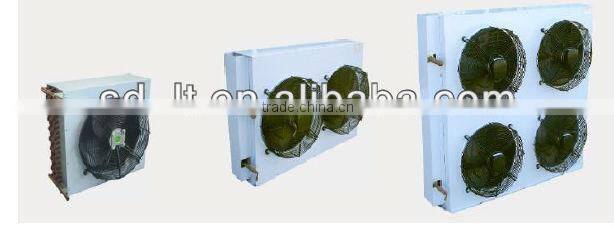

FN Type Air Cold Condenser

FN Type Air Cold Condenser Data Sheet

FN Type Air Cold Condenser Overall Size and Installation Size

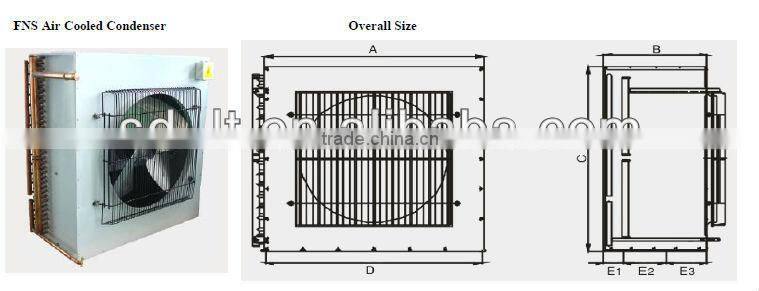

FNS Type Air Cold Condenser

FNS Type Air Cold Condenser Data Sheet

FNS Type Air Cold Condenser Overall Size and Installation Size

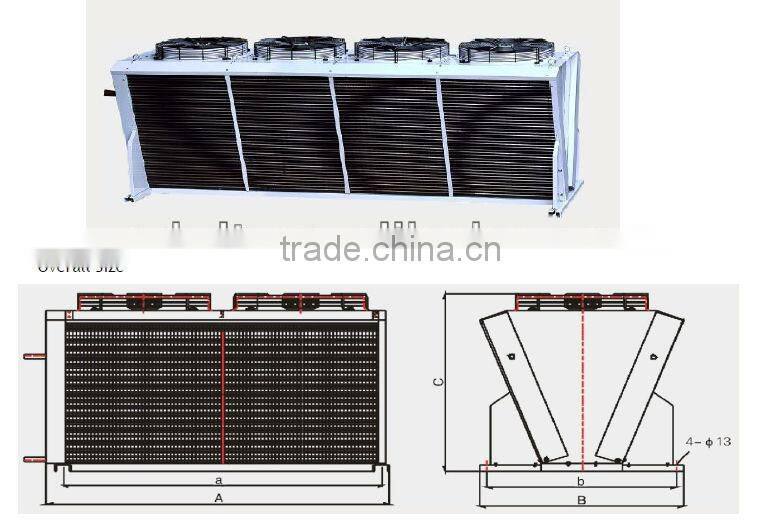

FNV Type Air Cold Condenser

FNV Type Air Cold Condenser Data Sheet

FNV Type Air Cold Condenser Overall Size and Installation Size

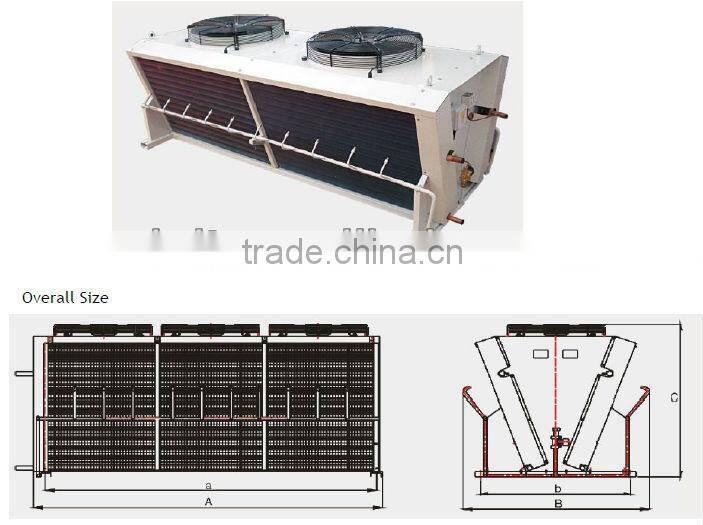

FNP Type Air Cold Condenser

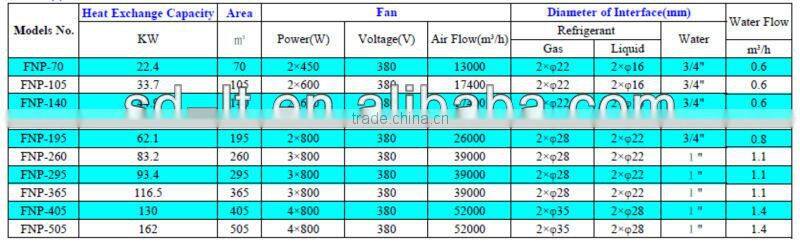

FNP Type Air Cold Condenser Data Sheet

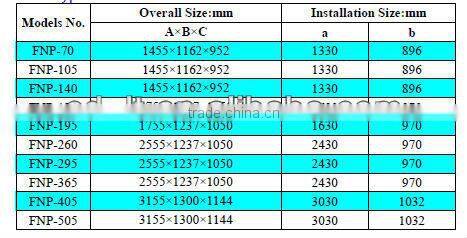

FNP Type Air Cold Condenser Overall Size and Installation Size
