Home > Products > RJ 45 Patch cord cable > 2014 new materials utp cat5e strand 26awg patch cord cable TC

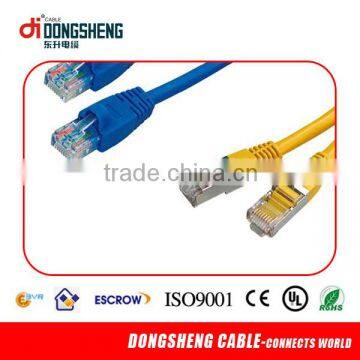

2014 new materials utp cat5e strand 26awg patch cord cable TC
- shanghai
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | dongsheng | |
| Model Number | utp cat5e strand 26awg patch cord cable TC | |||
Product Description
Specifications
utp cat5e strand 26awg patch cord cable1.Factory price
2.UL,CE,ROHS ceritificate
3.pass fluke dtx-1800
Specification
1.Specification: 4P
2.Rated Temperature: -45 °C - 75°C
3.Unshielded twisted pairs:
4.Conductor: 26AWG or 24AWG Stranding or Solid Bare copper
5.Insulation: HD-PE
6.Jacket: PVC or LSNH
7.Impedance:100±15%Ω at 1~100MHz
8.Reference standard: YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,
9.Print Legend: CM or CMR
Features
1.Fast and Reliable Connection
2.Twisted Pairs with Bright Color for Easy Recognition
3.Ripcord and Footmark for Convenient Use
4.Smooth Jacket for Easy Pulling in Tight Space
5.Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement
Cable Assembly Specification:
Shape | Conductor | Insulation | Core Number | Jacket | ||||
AWG | Specification (mm) | Material | Thickness (NOM.mm) | Material | Thickness (NOM.mm) | OD (NOM.mm) | ||
Circular Cable | 26 | 1/0.404 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 4.8 |
7/0.16 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.0 | ||
24 | 1/0.511 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.4 | |
7/0.203 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.5 | ||
Flat Cable (Non-sign) | 30 | 7/0.10 | HD-PE | 0.13 | 4P | PVC | 0.30 | 1.75*6.2 |
28 | 7/0.127 | HD-PE | 0.13 | 4P | PVC | 0.30 | 1.90*7.0 | |
24 | 7/0.203 | HD-PE | 0.18 | 4P | PVC | 0.50 | 3.0*9.0 | |
