Competitive factry price belden cat6 patch cord
- shanghai or ningbo
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | dongsheng | |
| Model Number | cables | Type | Cat 6 | |
| Number of Conductors | 8 |
Product Description
Specifications
1.ISO/IEC 11801,ANSI/TIA/EIA-568B/C2.UL,Rohs,ISO9001,PASS FLUKE DTX-1800
3.OEM or follow your own Brand
4.European quality
Competitive factry price belden cat6 patch cord
1. Overview
- Multi-stranded construction, soft, easily flexible, not break off easily.
- Many colors optional, specious and easily mark
- Different length can be available.
| Item | Patch cord |
| Conductor Material | utp patch cord cable 1meter |
| Conductor | Stranded 7*0.2mm/7*0.18mm/ 7*0.12mm(or others) |
| Insulation | HDPE /PE |
| Jacket | PVC/LSZH/ROHS(5.5mm) |
| Plug | UTP/FTP, RJ45( 8P8C,8P6C,8P4C.)RJ11(6P4C,6P2C) |
| Connector | (Transparent)Platic or Metal, Gold-Plated or Nickle-Plated |
| Plug gold plating | 3-50u |
| Length | As client's request |
| Certification | CE, RoHS,UL,ISO9001 |
| Standards | ETL 444/CSA-C22.2 No.214, Type CM/TIA/EIA-568A |
| Application | •100 Base-T4 •100 Base-TX |
3.Data Sheet
Frequency MHz | Return loss dB | Attenuation dB/100m | NEXT dB | ACR dB | PSNEXT dB | ELEFXT dB/100m | PSELEXT dB/100m | Delay ns/100m |
0.772 | 19.4 | 1.8 | 67 | 65 | 64 | 66 | 63 | 575 |
1.0 | 20.0 | 2.0 | 65.3 | 63.0 | 62.3 | 63.8 | 60.8 | 570 |
4.0 | 21.0 | 4.1 | 56.3 | 52.0 | 53.3 | 51.7 | 48.7 | 562 |
6.0 | 24.5 | 5.8 | 51.8 | 46.0 | 48.8 | 45.7 | 42.7 | 546.7 |
10.0 | 25.0 | 6.5 | 50.3 | 44.0 | 47.3 | 43.8 | 40.8 | 546.4 |
16.0 | 25.0 | 8.2 | 47.3 | 39.0 | 44.3 | 39.7 | 36.7 | 543 |
20.0 | 25.0 | 9.3 | 45.8 | 37.0 | 42.8 | 37.7 | 34.7 | 542 |
25.0 | 24.3 | 10.4 | 44.3 | 34.0 | 41.3 | 35.8 | 32.8 | 541.2 |
31.25 | 23.6 | 11.7 | 42.9 | 31.0 | 39.9 | 33.9 | 30.9 | 540.4 |
62.5 | 21.5 | 17 | 38.4 | 21.0 | 35.4 | 27.8 | 24.8 | 438.6 |
100.0 | 20.1 | 22 | 36.3 | 13.0 | 32.3 | 23.8 | 20.8 | 537.6 |

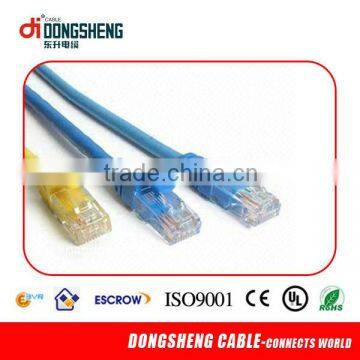

4. Product photos
5.Packing:
5.Certificate:
We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.
7.Test Equipment
8.Factory and Production line
We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.
9.Exhibition Trade Show
We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company to the future new customers.
10.More types of Cables we do
We also produce these cables for more than 21 years, RG6,RG11,RG59 COAXIAL CABLE, TELEPHONE CABLE, ALARM CABLE.MICROPHONE CABLE etc.
Hangzhou Lin`an Dongsheng Cable Co.,Ltd, was established in 1991,located at the foot of the Tianmu Mountain in Lin`an city, is 28km away from Hangzhou City, which is close to Shanghai port and Ningbo port with facilitated transportation
As a professional cable manufacturer in china,We specialized in producing of Coaxial Cable RG59,RG6,RG11 CATV and CCTV, Lan Cable Cat3,Cat5e,CAT6 UTP/FTP /SFTP for Indoor and Outdoor,Telephone Cable,Combined Cable,and cable accessories etc. We are covering 1,6000 square meters,including standard workshops and warehouse,to ensure your goods in goods production condition.
Meanwhile,Our company has obtained ISO9001,also our products has passed CE,RoHS ,UL certificate,which is Promise high quality cable .
