China Manu Facture Super Quality UTP Cat5e Cable With 4 Pair 0.50mm Conductor
- Shanghai/Ningbo
- T/T D/P D/A
You May Like
-
Network Cable 4 Pair 8 Cores UTP Cat5e Cable 8P 8C Patch Cable
-
22 Years Cable Factory For Cat5e Lan Cable, Network Cable UTP Cat5e
-
Competitive Cat5e Cable, New Model UTP Cat5e Cable, High Quality Cat5e Network Cable
-
High Quality Fluke Test Passed 24AWG Stranded 7*0.2mm Bare Copper UTP Cat5e/Cat6 UTP Network Cable 2m 3m
-
24AWG UTP Best Price UTP Cat5e Lan Cable Network Cable Cat5e Cu Standard Network Cable
-
Factory Directly Sale Indoor Lan Cable 4pr 24AWG UTP Cat5e Ethernet Cable Hangzhou
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DSC | |
| Model Number | MHYV | Type | Cat 5e | |
| Number of Conductors | 8 |
Product Description
China Manu Facture Super Quality UTP Cat5e Cable With 4 Pair 0.50mm Conductor
Descriptions Of Lan Cable Category utp cat 5e
Product Description: | |
Rated temperature: | 60℃,75℃,90℃ |
Installation temperature: | -30℃~+50℃ |
Minimum bending radius: | >4P 4D |
Reference Standard: | UL444,UL1581 |
Bare solid copper conductor | |
RoHS/REACH Complied PVC,PE or LSZH jacket | |
Complies to TIA/EIA-568-C.2&ISO/IEC 11801 | |
Application: | 100Base-TX 100Base-T4 100VG-AnyLAN 1000Base-T(Gigabit Ethernet) ATM |
Cable Construction (CAT5e)
Item No.
| Construction
| Nominal Conductor Dimension (mm) | Nominal Insulation Diameter (mm) | No.of Paris
| Nominal Cable OD. (mm) | Type of Jacket
| Remark
|
214102-1/214102/214702-1 | UTP | 0.50 | 0.88 | 4 | 5.1/5.4 | PVC/PE/LSZH | 100MHz |
214302 | UTP | 0.51 | 0.95 | 4 | 6.5 | PE | Water blocked Tape 100MHz |
214502 | UTP | 0.50 | 0.90 | 4 | 6.3 | PVC+/PE | 100MHz |
214102-2/214702-2 | UTP | 0.51 | 0.91 | 4 | 6.3 | PVC/LSZH | 350MHz |

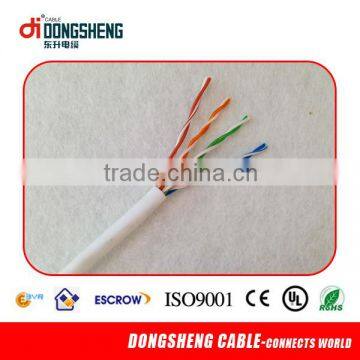

Pictures of utp cat 5e
Electrical characteristics
Frequency MHz | Impedance ohm | RL ≥dB | Attenuation ≤dB/100m
| NEXT ≥ dB/100m | ELFEXT ≥ dB/100m | PS NEXT ≥ dB/100m | PS ELFEXT ≥ dB/100m | NVP
|
1 | 100±15 | 20.0 | 2.0 | 65.3 | 63.8 | 62.3 | 60.8 | 68% |
4 | 23.0 | 4.1 | 51.7 | 51.7 | 53.3 | 48.7 | ||
10 | 25.0 | 6.5 | 43.8 | 43.8 | 47.3 | 40.8 | ||
16 | 25.0 | 8.2 | 39.7 | 39.7 | 44.2 | 36.7 | ||
20 | 25.0 | 9.3 | 37.8 | 37.8 | 42.8 | 34.7 | ||
31.25 | 23.6 | 11.6 | 33.9 | 33.9 | 39.9 | 30.9 | ||
62.5 | 21.5 | 17.0 | 27.8 | 27.8 | 35.4 | 24.8 | ||
100 | 20.1 | 22.0 | 23.8 | 23.8 | 32.3 | 20.8 | ||
*155 | 100±18 | 18.8 | 28.1 | 20.0 | 20 | 29.4 | 17.0 | |
*200 | 18.0 | 32.4 | 18 | 18.0 | 27.8 | 15.0 | ||
*310 | 100±22 | 16.7 | 41.8 | 14 | 14.0 | 24.9 | 11.0 | |
*350 | 16.3 | 44.9 | 13 | 13.0 | 24.1 | 10.0 |
Remarks:*it's the reference values
Production line and Factor photos
Exhibition Trade Show
We attend to Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company and products to the future new customers.
Certificate
More Products Choose
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
1. Q: What kind of cable do you produce?
We specialize in producing lan cable,coaxial cable,alarm cable,telephone cable speaker cable etc.
2. Q: What's your MOQ?
A: Our MOQ is 30km per item. Free samples can be sent for your quality evaluation.
3. Q: What’s your delivery time?
Normally, our delivery time is 20 days after receiving deposit. Base on the quantity of the order.
4. Q: What are your payment terms?
We accept T/T, L/C, DP at sight,Other payments accept through negotiation.
5. Q: What is your manner of packing?
the color box and cartons,or wooden plates,wooden splints
It can as the customers'requests
6. Q: Can your factory customize cables based on customer’s samples?
Yes, we can. OEM and ODM are both welcome.
