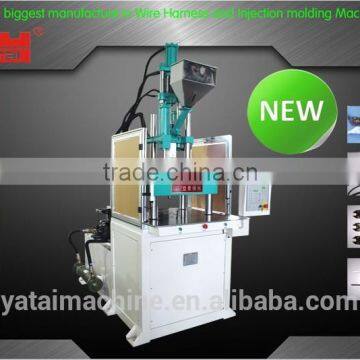

2015 new plastic injection molding machine
USD $1 - $17,000
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Zhongshan
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
plastic injection moulding machine sliding table
-
Vertical plastic injection machine screw sshear tooth brush handle making
Quality Choice
-
Double slides plastic injection machine 2 sliders working table high efficiency
-
V85 Vertical Injection Molding Machine fixed working table high precise
-
Baby feeding nipple making machine
-
Vertical injection molding machine
Product Details
| Condition | New | Type | Preform Injection | |
| Style | Vertical | Brand Name | Qianke | |
| Model Number | V85 | Place of Origin | Guangdong, China | |
| Plastic Type | Thermoplastic | Automatic | Yes | |
| Injection Weight | 105-164g | Injection Rate | 107(138) mm/s | |
| Clamping Force | 85Tf, 85Ton | Opening Stroke | 250mm | |
| Power(W) | 21.4KW | Certification | ISO9001,CE | |
| After-sales Service Provided | Overseas service center available |
Product Description
Product Description
| Unit | V85 | |||||
| Injection Unit | Screw Diameter | mm | 32 | 36 | 40 | |
| Theoretical Injection Volume | cm3 | 113 | 142 | 176 | ||
| Injection Weight(PS) | g(oz) | 105(3.7) | 132(4.6) | 164(5.8) | ||
| Max.Injection Pressure | Mpa(kgf/cm2) | 229(2331) | 181(1842) | 146(1492) | ||
| Injection Rate | cm3/s | 86 | 109 | 134 | ||
| Injection Speed | mm/s | 107(138) | ||||
| Screw Speed Rotation | r.p.m | 0-300 | ||||
| Nozzle Out From Platens | mm | ≥45 | ||||
| Clamping Unit | Clamping Force | KN(tf) | 833(85) | |||
| Clamping Stroke | mm | 250 | ||||
| Min.Mold Thickness | mm | 230(330) | ||||
| Max.Opening | mm | 480(580) | ||||
| Distance Between Tie Bars | mm | 500*385 | ||||
| Max.Mould Size | mm | 550*480 | ||||
| Platen/Slide Size | mm | 680*570 | ||||
| Ejector Distance | mm | 50 | ||||
| Ejector Force | KN(tf) | 26.5(2.7) | ||||
| Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | |||
| Oil Tank Capacity | L | 280 | ||||
| Electric Power | KW(HP) | 15(20) | ||||
| Heater Power | KW | 6.4 | ||||
| Machine Dimensions | L*W | mm | 1960*1410 | |||
| H | mm | 2632(3352) | ||||
| Machine Weight | tf | 3.0 | ||||
Packaging & Shipping
1. We will arrange manufacture after confirmation,we can delivery it usually after 35days
2. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us
Company Information
Zhongshan Yatai Machinery Co., Ltd. is biggest wire processing factory in the area of perl river delta region ,Specialized in R&D and producing plastic injection molding machines, full auto wire stripping crimping machines, cutting stripping machines, tube cutting machines and automatic robot hands.If you want to know more about our pruducts,please browse the website as follows
