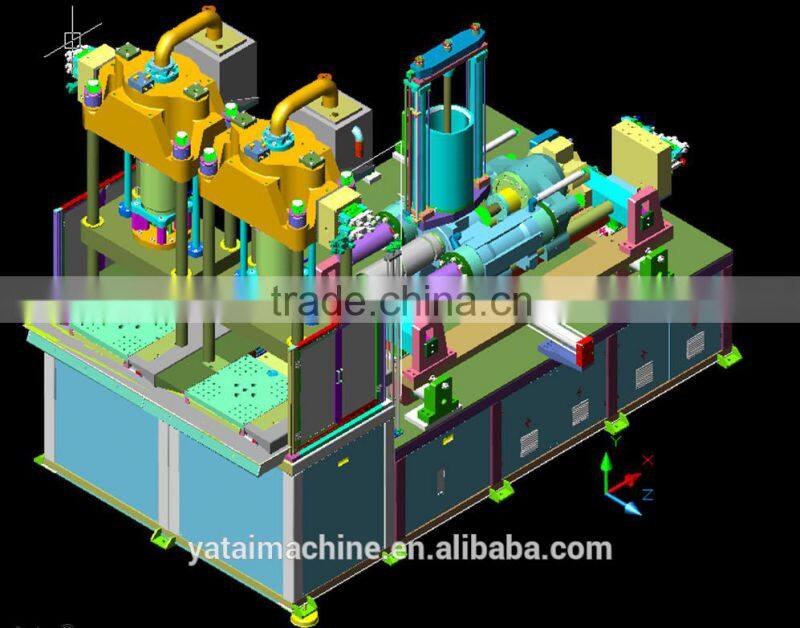

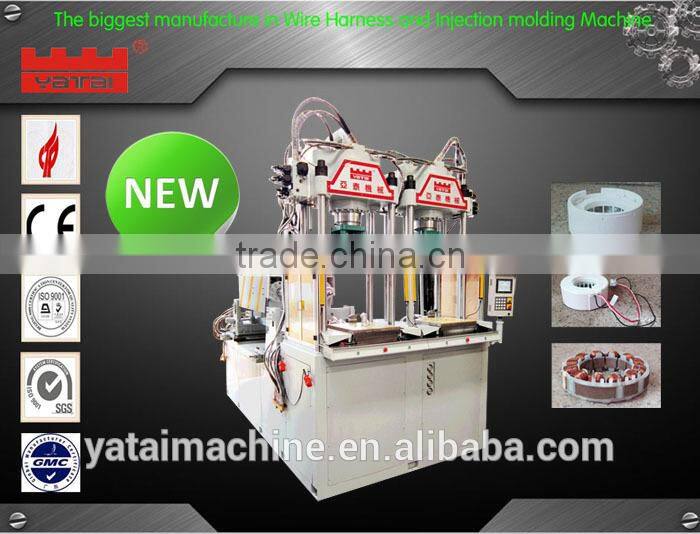

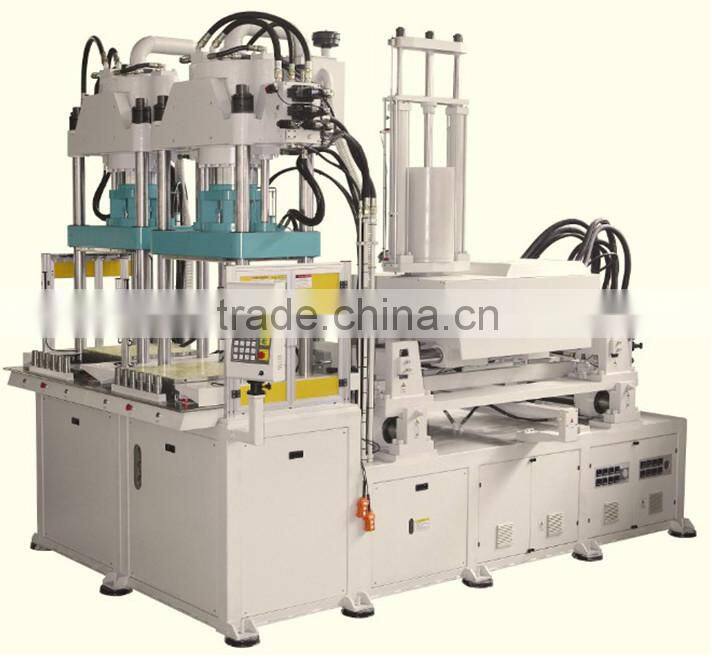

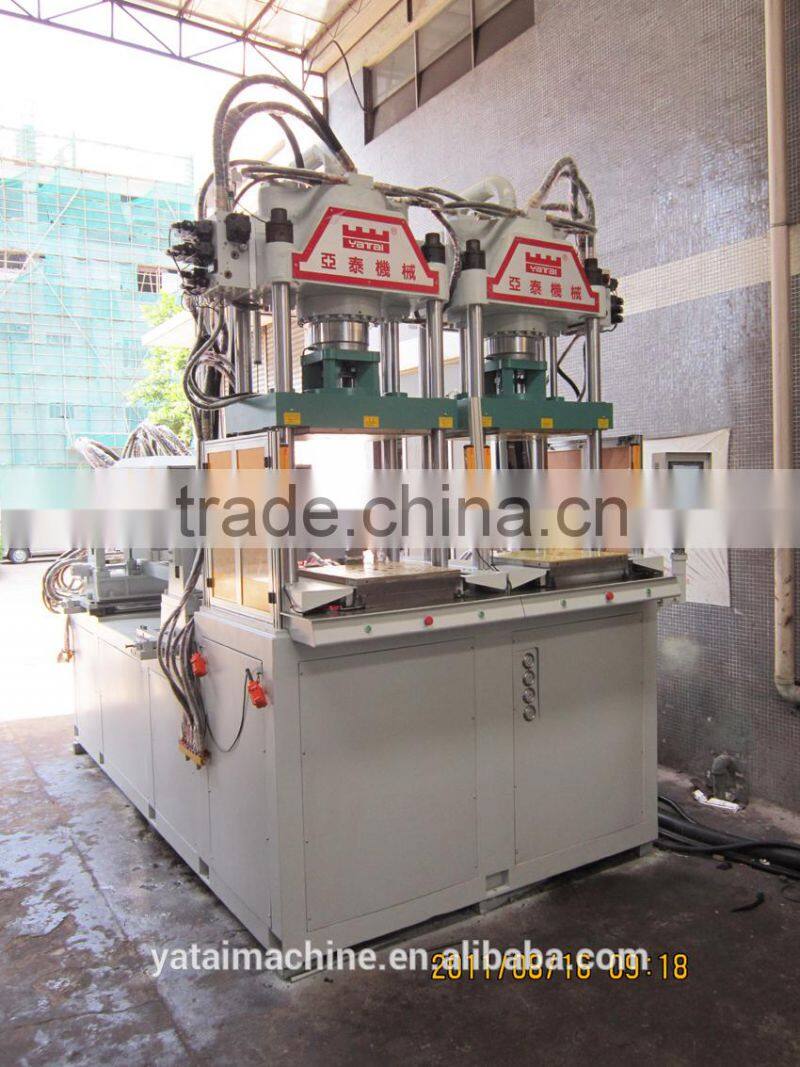

BMC Injection Molding Machine

FOB Price

US$ 1 - 60,000 / Set

1 Set(Min. Order)

Port Zhongshan
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Preform Injection
Style	Vertical	Brand Name	YaTai
Model Number	H120S-2M-BMC	Place of Origin	Guangdong, China
Plastic Type	Thermoplastic	Automatic	Yes
Injection Weight	2781g	Injection Rate	49mm/s
Clamping Force	120ton, 120ton	Opening Stroke	700mm
Power(W)	36.5kw	Certification	ISO9001,CE
After-sales Service Provided	Overseas service center available

Product Description

Model No.				H120S-2M-BMC
Injection Unit	Screw Diameter		mm	75
	Theoretical Injection Volume		cm3	1545
	Injection Weight(PS)		g(oz)	2781(97.9)
	Max.Injection Pressure		Mpa(kgf/cm2)	127(1294)
	Injection Rate		cm3/s	216
	Injection Speed		mm/s	49
	Screw Speed Rotation		r.p.m	0-220
Clamping Unit	Clamping Force		KN(tf)	1176(120)*2
	Clamping Stroke		mm	350
	Min.Mold Thickness		mm	350
	Max.Opening		mm	700
	Max.Mould Size		mm	580*540
	Platen/Slide Size		mm	600*560
	Ejector Distance		mm	100
	Ejector Force		KN(tf)	45(4.6)
Others	System Pressure		Mpa(kgf/cm2)	140
	Oil Tank Capacity		L	300
	Electric Power		KW(HP)	18.75(25)*2
	Machine Dimensions	L*W	mm	4467*2940
		H	mm	3595
	Machine Weight		tf	17

1. Before shipping,we will check and test the machine carfully

2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 40 days

3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us

1. Provide free guidance of before you start use our injection molding machine

2. 1 year warranty

3. Free remote guidance by video chat when you have problem during use the BMC injection molding machine

Zhongshan Yatai Machinery Co., Ltd. is biggest wire processing factory in the area of the perl river delta region ,Specialized in R&D and producing plastic injection molding machine, full auto wire stripping crimping machines, cutting stripping machines, tube cutting machines and automatic robot hands.If you want to know more about our pruducts,please browse the website as follows
