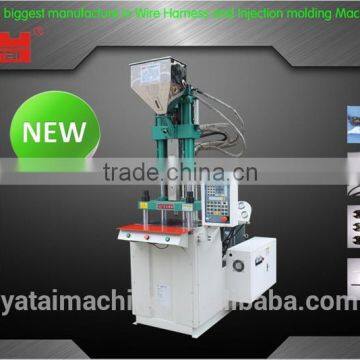

Machine for Making Electric Plug
- Zhongshan
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Condition | New | Type | Preform Injection | |
| Style | Vertical | Brand Name | Yatai | |
| Model Number | V35 | Place of Origin | Guangdong, China | |
| Plastic Type | Thermoplastic | Automatic | Yes | |
| Injection Weight | 49-80g | Injection Rate | 116-186mm/s | |
| Clamping Force | 35ton, 35ton | Opening Stroke | 350-400mm | |
| Power(W) | 9.1kw | Certification | CE,ISO9001:2008 | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1. Small vertical type2. 35ton clamping force
3. 15-500ton also available
4. important parts imported from overseas
| Model No. | V35 | |||||
Injection Unit  | Screw Diameter | mm | 22 | 25 | 28 | |
| Theoretical Injection Volume | cm3 | 53 | 68.8 | 86 | ||
| Injection Weight(PS) | g(oz) | 49(1.7) | 63.8(2.2) | 80(2.8) | ||
| Max.Injection Pressure | Mpa(kgf/cm2) | 248(2530) | 192(1960) | 153(1563) | ||
| Injection Rate | cm3/s | 44 | 57 | 71 | ||
| Injection Speed | mm/s | 116(186) | ||||
| Screw Speed Rotation | r.p.m | 0-300 | ||||
| Nozzle Out From Platens | mm | ≥45 | ||||
Clamping Unit  | Clamping Force | KN(tf) | 343(35) | |||
| Clamping Stroke | mm | 200 | ||||
| Min.Mold Thickness | mm | 150(200) | ||||
| Max.Opening | mm | 350(400) | ||||
| Distance Between Tie Bars | mm | 370*210 | ||||
| Max.Mould Size | mm | 350*340 | ||||
| Platen/Slide Size | mm | 500*360 | ||||
| Ejector Distance | mm | 40 | ||||
| Ejector Force | KN(tf) | 17.2(1.75) | ||||
| Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | |||
| Oil Tank Capacity | L | 130 | ||||
| Electric Power | KW(HP) | 5.5(7.5) | ||||
| Heater Power | KW | 3.6 | ||||
| Machine Dimensions | L*W | mm | 1539*1152 | |||
| H | mm | 2196(2811) | ||||
| Machine Weight | tf | 1.3 | ||||
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days
3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us
1. Provide free guidance of before you start use our injection molding machine
2. 1 year warranty
3. Free remote guidance by video chat when you have problem during use the injection molding machine
