33KV, 3PH, 50Hz. Shunt/Filter Capacitor

FOB Price

USD $100 - $1,000 / Piece

5 Pieces(Min.Order)

Port Shanghai Ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Keang
Model Number	BFM-S	Type	Polypropylene Film Capacitor
Application	Power	Package Type	Surface Mount
Capacitance	25 - 200 KVAr	Rated Voltage	660 V to 12 KV
Operating Temperature	-40~+45℃

Product Description

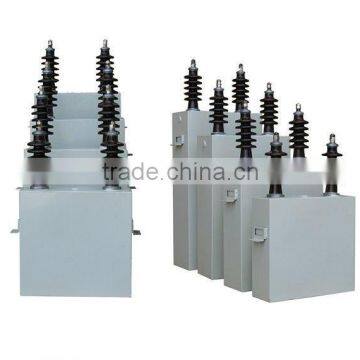

Product: 33KV, 3PH, 50Hz. Shunt/Filter Capacitor

Application:

The 33KV, 3PH, 50Hz. Shunt/Filter Capacitor (direct sales, Manufacturer) are designed for power factor correction and harmonics filtration at medium voltage. They are all-film dielectric – polypropylene foil impregnated with an environmentally friendly, non-toxic biodegradable insulating oil. There is the aluminium foil as the electrodes. This construction assures minimal looses of the capacitors. Three-phase units are in star – Y connection, single-phase units are in I connection. The capacitors have internal discharge resistors.

Technical performance

Standards :	GB/T 11024.1 / IEC 60871.1
Location:	Less 1000m
Cooling	Naturally air cooled
Ambient temperature:	-40/+45°C
Capacitance tolerance:	-5 / +10 %
Continuous operation voltage:	1.0Un, long-term max. Overvoltage:less1.1Un.
Over- current:	Less 1.43 In
Max. Permissible output:	less 1.35Qn.
Discharge device (on request):	Less than 75V in 10min
Voltage test between terminals:	2.15×UnAC / 10s

*Other voltage, power and frequency on request.

We can supply the special requirement for the customers as follows:

1. Discharge resistance inside; 2. Internal fuse inside; 3. Wet tropics; 4. Plateau section

In case of request of different dimensions or different number of tapping, you may provide us a drawing or sketch with requested modification of case, brackets, tappings, etc.

Packing:

*We can also request customized according to your parameters.
