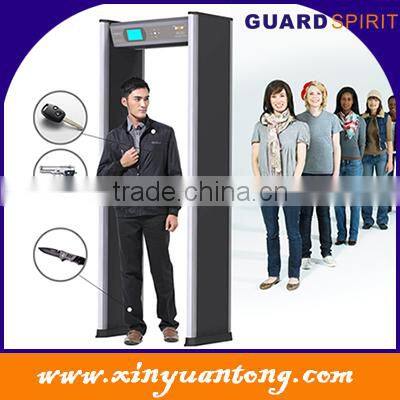

Walk Through Metal Detector for Private Buildings

Technical parameter

Electric current: AC85V~264V/50-60HZ

Power: <20W, low consume, low radiation

Gross weight: 70KG

Workplace environment: -20℃~+50℃

Standard: GB15210-2003, CE

Standard External size: 2230mm(H)X835mm(W)X580mm(D)

Standard Internal size: 1990mm(H)X700mm(W)X500mm(D)

Characteristic & Function

1. 5.7 inch LCD screen withInfrared remoter controller
2. Adopt advanced digital signal processing control replaced traditional analog signal control, better stability.
3. Friendly windows interface, both Chinese and English program, easy to operate.
4. Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.
5. Automatically count passengers and alarm times, keep alarm records for inquiry (up to 20000 records)

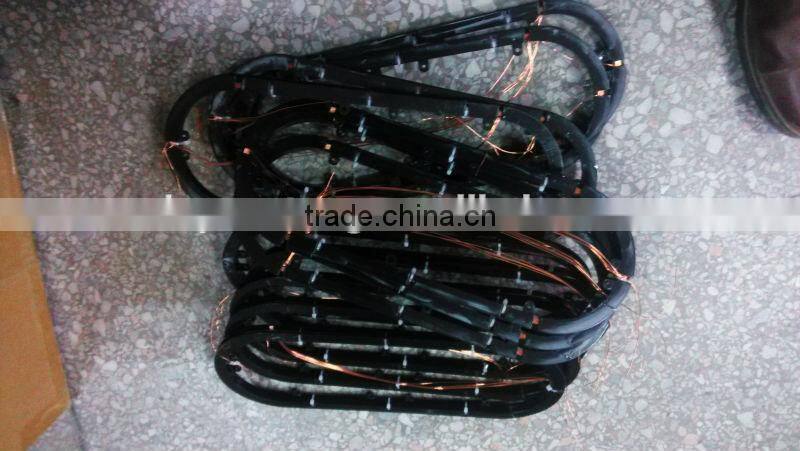

6. Detecting Zones: 6 detecting loops, can extend to 12,18 zones by separate left, right, ,middle side detection to pinpoint detection(As follow picture)
7. Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt..
8. Sound Alarm: 1-25s alarm time, 255 different sound volume and 12 tones for choose
9. LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles
10. Lock and Password protection, only the authorized person can operate.
11. Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference
12. 6 preset programs for security application versatility
13. 4 hours Battery backup , the uninterruptible power protection system secure the parameters when power off.
14. PVC material and Control unit on the top, waterproof, moisture-proof and cooler.
15. Integrated and modularized circuit design lead to simple installation and more convenient after services.
16. Adjustable Passing speed: up to 100 persons/min
17. Background light: 0-99 seconds for choose
18. Battery Backup not less than 4 hours.
19. Calendar function: real time display year, month, date, hour, minute, second
20. Harmless to heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
21. Network support: (For Option)

Application
Walkthrough Metal Detector is popular adopted in Jail house, Entertainment environments, Gymnasiums, Exhibition Centers, factory and so on.
