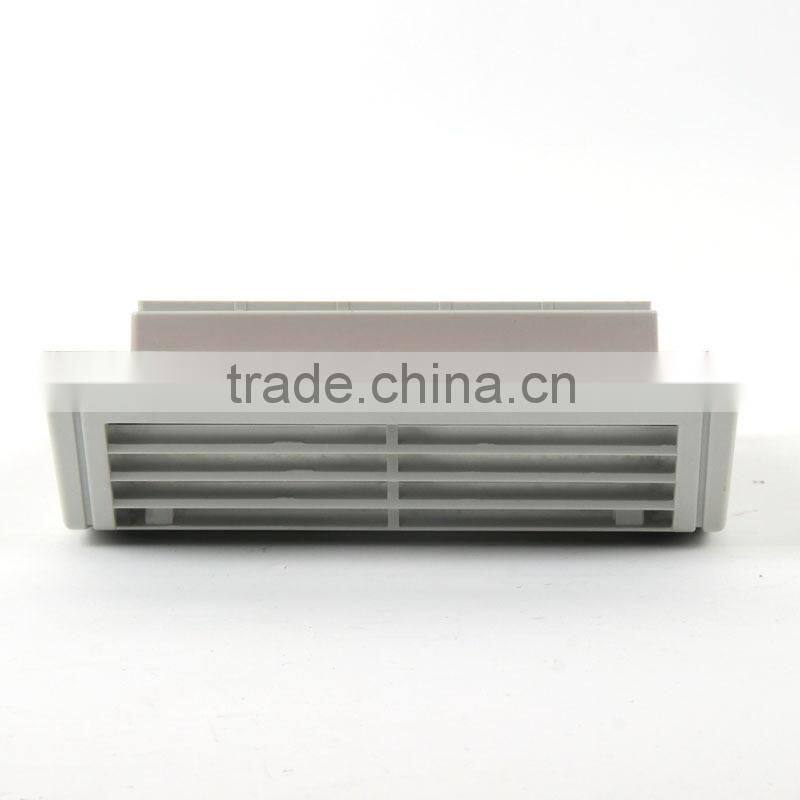

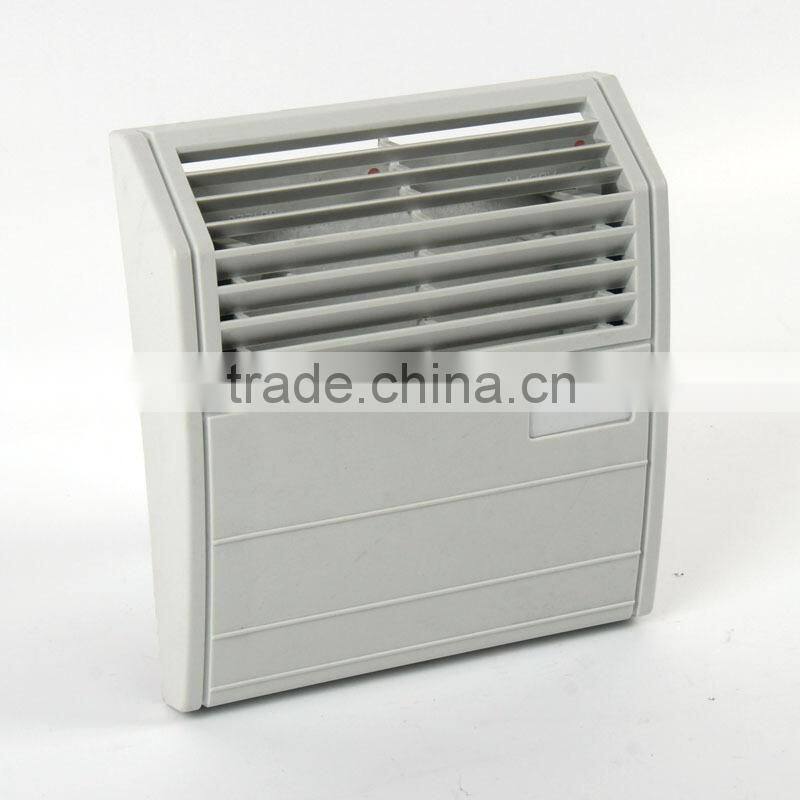

High Quality 14-69 Cfm Mini Industrial Filter Fan With CE
- NINGBO SHANGHAI
- T/T Credit Card PayPal
You May Like
-
High Quality 202 Cfm Mini Industrial Filter Fan With CE
-
High Quality 373 Cfm Mini Industrial Filter Fan With CE
-
CS 060 Touch-Safe PTC Carbon Fiber Industrial Water Electric Heater With CE
-
CSF 060 Touch-Safe PTC Carbon Fiber Industrial Water Electric Heater With CE
-
CSK 060 Touch-Safe PTC Enclosure Industrial Electric Mini Air Heater With CE
-
HGL 046 Economical PTC 250&400W Semiconductor Electrical Duct Fan Heater With CE
Product Details
| Place of Origin | Zhejiang, China | Brand Name | WINSTON | |
| Model Number | FF 018 14-69 cfm | Usage | Other, Industrial, Industrial | |
| Theory | Other, Temperature Controller, Temperature Controller | Accuracy | 100% | |
| Temperature Range | -45 to 70 degree controlling |
Product Description
The self-adhesive seal of the mounting frame prevents dust and water from entering the cabinet.
Functional design of the intake and exit fan hoods very effectively prevents direct intrusion of falling water and dust. The advantage is that the filter mat does not get so quickly contaminated with dirt and thus does not need to be exchanged so often.
The air channeling makes the filter fan particularly quiet in operation.
Functional and modern design enables time-saving assembly and maintenance. EMC versions and other voltages on request.
The direction of air flow can easily be switched by reversing the axial fan (sizes 1 to 3)
Axial fan, ball bearing | service life min.50 000h at 25°C /77°F(65%RH) |
| fan body aluminium, rotor plastic | |
| Connection | 2 wires with pressure clamps 2.5mm², length 100mm |
| Casing (filter fan and exit filter) | plastic according to UL94 V-0, light grey |
| Hood (filter fan and exit filter) | plastic according to UL94 V-0, light grey, weather proof and UV light resistant according to UL746C (f1) |
| Mounting frame | with double-side industrial adhesive band for fixing to the outside of enclosure; certain operating circumstances can make the additional use of screws necessary (see drilling template); included in the delivery of the filter fans is a template for the enclosure cut-out. |
| Filter mat | G4 acc. to DIN EN 779, filtering degree 94% |
| Filter material | synthetic fibre with progressive construction, temperature resistant to 100°C, self-extinguishing class F1; moisture resistant to 100% RH; reusable - cleaning by washing or vacuuming |
| Operating/Storage temperature | -45 to +70°C (-40 to +158°F) |
| Protection type/Protection class | IP54 / I (earthed) |
*Using fine filter mats type F5 increases the protection type to Ip55, but reduces the air volume.
Art. No. | Operating voltage | Air volume, free flow | Air volume with exit filter | Current consumption | Power consumption | Average noise level (DIN EN ISO4871) | Depth in enclosure | Enclosure cut-out | Weight (approx.) |
| 01800.0-00 | 230VAC, 50Hz | 21m³/h | 16m³/h | 80mA | 13W | 31dB (A) | 45mm | 97 x 97mm + 0.4 | 0.6kg |
| 01801.0-00 | 230VAC, 50Hz | 55m³/h | 42m³/h | 100mA | 15W | 40dB (A) | 58mm | 125 x 125mm + 0.4 | 1.0kg |
| 01802.0-00 | 230VAC, 50Hz | 102m³/h | 68m³/h | 100mA | 15W | 39dB(A) | 86mm | 176 x 176mm + 0.4 | 1.3kg |
| 01800.0-01 | 120VAC, 60Hz | 24m³/h | 18m³/h | 160mA | 13W | 31dB (A) | 45mm | 97 x 97mm + 0.4 | 0.6kg |
| 01801.0-01 | 120VAC, 60Hz | 63m³/h | 48m³/h | 180mA | 15W | 40dB (A) | 58mm | 125 x 125mm + 0.4 | 1.0kg |
| 01802.0-01 | 120VAC, 60Hz | 117m³/h | 78m³/h | 180mA | 15W | 39dB (A) | 86mm | 176 x 176mm + 0.4 | 1.3kg |
What is the delivery way?
(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.
(2)If ship by express company,you will get a Tracking No. from us after ship.
What the Certifications do we have obtained?
What is the payment?
What's the Refund & Replacement?
1. 90-day-warranty.
If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)
2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).
Company view
How do our thermostat switches on and off?
1. An outer dial enables you to set the temperature at which the thermostat switches on and off.
2. The dial is connected through a circuit to the temperature sensor (a bimetal strip, shown here colored red and blue), which switches an electrical circuit on and off by bending more or less.
3. The bimetal ("two metal") strip is made of two separate metal strips fastened together: a piece of brass (blue) bolted to a piece of iron (red).
4. Iron expands less than brass as it gets hotter, so the bimetal strip curves inward as the temperature rises.
5. The bimetal strip forms part of an electrical circuit (gray path). When the strip is cool, it's straight, so it acts as a bridge through which electricity can flow. The circuit is on and so is the heating. When the strip is hotter, it bends and breaks the circuit, so no electricity can flow. Now the circuit is off.
What is the MOQ of our our Thermostat?
MOQ: We support sample order.(1~5PCS)
More than 500PCS,can pring Logo on the products.
What is the guarantee Period for our our Thermostat?
1-2Year afer sold
How to Visit and contact us?
Firstly, you are highly welcomed to visit our factory, we can provide you an invitation letter from Chinese Embassy for you if needed. Besides, we are more pleased to help you to book a flight or hotel to save your time.
