Home > Products > Fan Heater > HG 140 IP20 Aluminum 120V to 240V AC DC PTC Resistor Fan Heater With CE
HG 140 IP20 Aluminum 120V to 240V AC DC PTC Resistor Fan Heater With CE
- Ningbo/Shanghai
- T/T Credit Card PayPal
You May Like
-

                        WP800 Series Vector Frequency Inverter With CE
-

                        WST200 Series Electric Motor Water Pump Controller Vetor Control Frequency Inverter With CE
-

                        WSTRD Series Inside 220v Vetor Control Motor Soft Starter* DC Soft Starter Quality Choice
-

                        WSTR-3000 Series Vetor Control Mobile dc Motor Soft Starter With CE
-

                        WS Series Adjustable MCCB Moulded Case Leakage Protection Circuit Breaker With CE
-

                        DZ47 1P 63A Manufacturer Mini Circuit Breaker,Over Under Voltage DIN Rail MCB Circuit Breaker With CE Quality Choice
Product Details
| Condition | New | Type | Air Heater | |
| Power Source | Other, Electric, Electric | Place of Origin | Zhejiang, China | |
| Brand Name | Winston OEM | Model Number | HG140 | |
| Dimension(L*W*H) | 65MM (L) | Weight | 0.3KG, 0.3KG | |
| Voltage | 120-240V AC/DC* (min. 110V, max. 265V) | Power(W) | 15w | |
| Certification | CE, RoHS | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

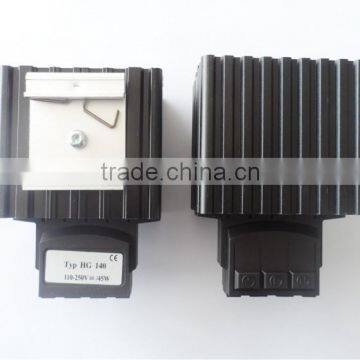

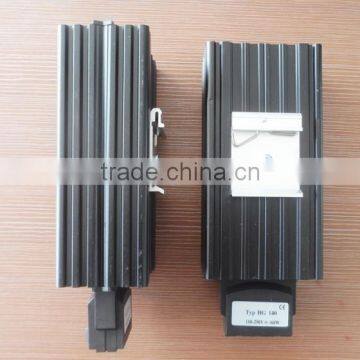

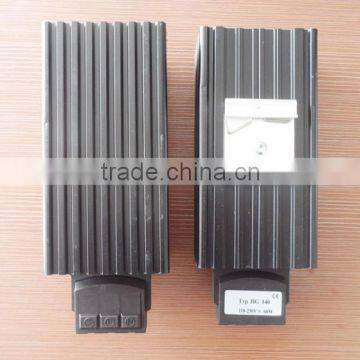

HG 140 IP20 aluminum 120V to 240V AC DC PTC Resistor fan Heater with CE
 What is fan heater?
A fan heater is a heater that works by using a fan to pass air over a heat source (e.g. a heating element). This heats up the air, which then leaves the heater, warming up the surrounding room. They can heat an enclosed space such as a room faster than a heater without fan, but, like any fan, create audible noise.
Where is our fan heater application?
1. Pressure clamp connectors
2. Dynamic heating up
3. Wide voltage range
4. Temperature limiting
5.  Energy saving
6.  Clip fixing
7. Quick installation
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The pressure clamp connectors save time and simplify installation.
What is the Features of the fan heater ?
aluminum profile heater body
simplify installation
PTC resistor, self regulating and temperature limiting
Vertical Fitting
High efficiency, long life and high reliability
2 years warranty
 What is the Specifications about our fan heater ?
| Technical Data | ||||||||||||||||||||||||||||||||||||||||||||||||
|
 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Technical Data | ||||||||||||||||||||||||||||||||||||||||||||||||
|
 |

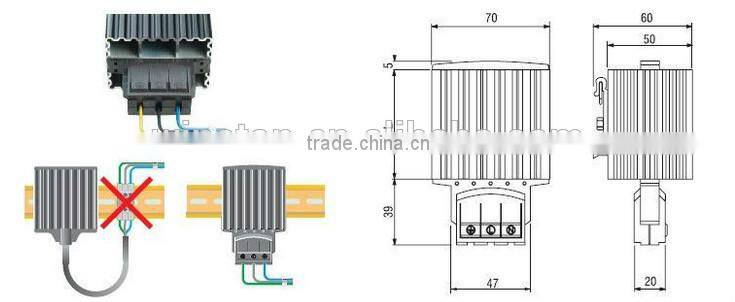

 What is the Overall dimension of our fan heater ?

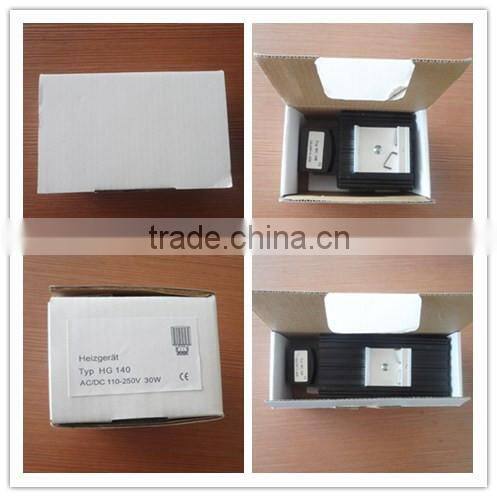

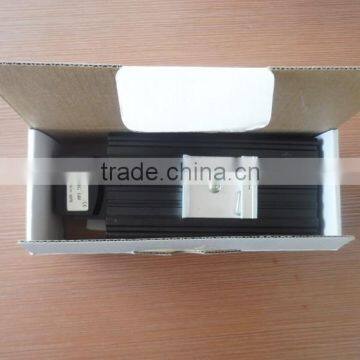

 What is the packing for our fan heater ?
What is the delivery way?
(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.
(2)If ship by express company,you will get a Tracking No. from us after ship.
What the Certifications do we have obtained?
What is the payment?
 What's the Refund & Replacement?
1. 90-day-warranty.
If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)
2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).
Company view
How to determine size of our fan heater?
PH=(A x ΔT x K)-PV
PH=Required heating power for your application in Watts(W)
PV=Heating power generated by existing components(e.g.a transformer)in Watts(W)
A=Exposed enclosure surface area in square meters(m2)
ΔT=Temperature differential between the desired minimum interior temperature and the Lowest possible external temperature of the enclosure in Kelvin(K), 1.8°F=1°c=1K K= Heat transmission coefficient of the enclosure material.
used:
Painted steel:5.5W/m2K
Stainless steel:3.7W/m2K
Aluminum:1.2W/m2K
Polyester/Plastc:3.5W/m2K
For outdoor appllcations it is recommended to double the heating power.
What is the MOQ of our fan heater ?
MOQ: We support sample order.(1~5PCS)
More than 500PCS,can pring Logo on the products.
What is the guarantee Period for our fan heater ?
1-2Year after sold
How to Visit and contact us?
 Firstly, you are highly welcomed to visit our factory, we can provide an invitation letter from Chinese Embassy for you if needed.  Besides, we are more pleased to help you to book a flight or hotel to save your time.
