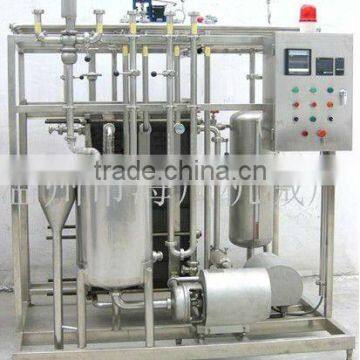

Milk and Beverage Plate UHT Sterilizer
- Ningbo China
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HCJX | |
| Model Number | HC-UHT | Processing Types | Other, milk ,beverage,--- |
Product Description
The machine adopts UHT processing method,makes liquid dairy beverage and juice etc strictly sterilized, then into aseptic package, with the sterilization temperature:137degree , warm keeping time:3-5S, so to keep the original utrition, color and flavour of the beverage and dairy. This machine os of the advantage of high heat recycle, compact and fine structure, and temperature control. Outputting material temperature,and cool packing.
capacity:1-10T/h controling way:semi-autmatic (PLC controlling, touch screen).
| Model | GL-UHT-1 | GL-UHT-2 | GL-UHT-3 | GL-UHT-4 | GL-UHT-5 |
| Production capacity(T/H) | 1 | 2 | 3 | 4 | 5 |
| Heat exchanging Area | 16 | 26 | 36 | 46 | 56 |
| Material inlet temperature | 5 | 5 | 5 | 5 | 5 |
| Material Outlet temperature | 5 | 5 | 5 | 5 | 5 |
| Sterilizing temperature | 137 | 137 | 137 | 137 | 137 |
| Warm keeping times | 4s | 4s | 4s | 4s | 4s |
| Ice water | 1 | 1 | 1 | 1 | 1 |
| Ice water consumption(T/H) | 3 | 4 | 6 | 8 | 12 |
| Joint Size (mm) | 25 | 38 | 38 | 51 | 51 |
| Wight(KG) | 980 | 1080 | 1160 | 1350 | 1650 |
| Size(mm) | 1500*1500*2000 | 1900*1800*2200 | 2100*2200*2500 | 2300*2000*2500 | 2600*2200*2500 |
| Power(KW) | 3 | 4 | 5 | 6 | 7 |
The machine adopts UHT processing method,makes liquid dairy beverage and juice etc strictly sterilized, then into aseptic package, with the sterilization temperature:137degree , warm keeping time:3-5S, so to keep the original utrition, color and flavour of the beverage and dairy. This machine os of the advantage of high heat recycle, compact and fine structure, and temperature control. Outputting material temperature,and cool packing.
capacity:1-10T/h controling way:semi-autmatic (PLC controlling, touch screen).
| Model | HC-UHT-1 | HC-UHT-2 | HC-UHT-3 | HC-UHT-4 | HC-UHT-5 |
| Production capacity(T/H) | 1 | 2 | 3 | 4 | 5 |
| Heat exchanging Area | 16 | 26 | 36 | 46 | 56 |
| Material inlet temperature | 5 | 5 | 5 | 5 | 5 |
| Material Outlet temperature | 5 | 5 | 5 | 5 | 5 |
| Sterilizing temperature | 137 | 137 | 137 | 137 | 137 |
| Warm keeping times | 4s | 4s | 4s | 4s | 4s |
| Ice water | 1 | 1 | 1 | 1 | 1 |
| Ice water consumption(T/H) | 3 | 4 | 6 | 8 | 12 |
| Joint Size (mm) | 25 | 38 | 38 | 51 | 51 |
| Wight(KG) | 980 | 1080 | 1160 | 1350 | 1650 |
| Size(mm) | 1500*1500*2000 | 1900*1800*2200 | 2100*2200*2500 | 2300*2000*2500 | 2600*2200*2500 |
| Power(KW) | 3 | 4 | 5 | 6 | 7 |
