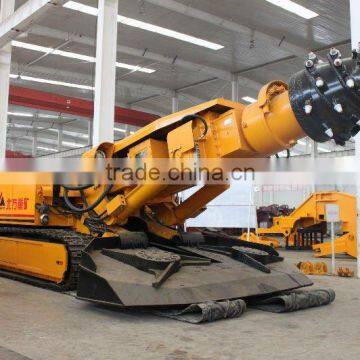

EBZ132 Roadheader

Specifications

1.Working Range

Our Coal Boring Machine can be applied in various conditions for coal boring, such as solid road, mixed coal-rock, soft rock and so on. It could also work on railway, highway, hydraulic engineering and other tunnels. Its cutting hardness is 70mpa and grade is ±18°.

2.Features

This machine adopts double-quantitative pump, hydraulic control pilot and electronically control valve to ensure the equipment could use in normal and special conditions. Low speed high torque motor effects to reduce the failure rate; shunt valve guarantees synchronism operation of star wheel, first transport and driving motor, meanwhile removing the shunt and reducing the failure rate; driving motor, reducer, brake, brake valve and reducing valve integrate into one compact form which easy to instal; the system uses imported hydraulic components which has low uninstall features, reducing working load and caloric value, delaying the fuel aging, improve fuel working life; centralized lubrication oil ensures the working simplified; the cutting head with two-speed dual-voltage characteristics to adapt to the device much easier to suit different conditions.

3.Main Parameters

4.Equipments Introduction

1. Cutting head

1. Cutting teeth
2. Cutting telescopic part
3. Cutting speed reducer
4. Star wheel motor
5. Star wheel
6. Apron
7. Driving speed reducer
8. First transport motor

10. First transport boom plates

11. Track assembly

12. Rotation support

13. Bearing

14. Flame-proof of three-phase motor

15. Mine flame-proof electronic control box

16. Mine flame-proof control box

17. Mine flame-proof sensor

18. Mine methane sensor

19. Gas alarm outage machine

20. Auxiliary relay

21. Mine flame-proof light

22. Mine flame-proof emergency stop button

23. Mine flame-proof double-hit bell

24. PLC controller

25. Dual hydraulic pump

26. Multi-way reversing valve

27. Balance valve assembly

28. Hydraulic handle

29. Filter assembly

30. Oil-level gauge

31. Coupling

32. Hydraulic hose

33. Hydraulic joint

34. Hydraulic tank

35. Two-story steel hose series assembly

36. Mobile light flexible rubber-sheathed cables

37. Oil coolers

38. Nozzle

39. High strength mining round link chain

40. Opening ceremony connecting ring

41. Floating steal

42. OR rotating steal

43. Flexible cables with screens

Production Time:

30 working days after we get 30% advance payment or irrevocable L/C at sight.
