Home > Products > Forklift Trucks > CPCD100 10T diesel forklift truck

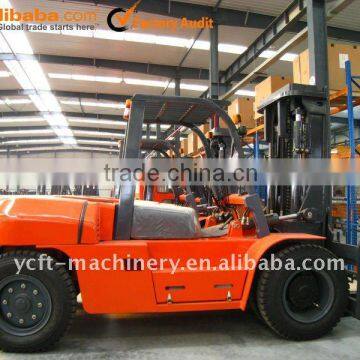

CPCD100 10T diesel forklift truck
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | JAC | Model Number | CPCD100 10T diesel forklift truck | |
| Type | Powered Pallet Truck | Power Souce | Diesel Engine | |
| Rated Loading Capacity | 10000KG | Max. Lifting Height | 3000MM | |
| Min. Lifting Height | 190MM | Fork Length | 80mm | |
| Fork Width | 175mm | Overall Dimensions | 5430x2245x2560 |
Product Description
Specifications
Hydraulic T/M ,With ISZUZU 6BG1 Engine ,Two Stages Lifting Height Tower Is 3M Mast, Fork Postitioner,LF1220mm,Pneumaic Tyre
Configuration
Hydraulic T/M ,With ISZUZU 6BG1 Engine ,Two Stages Lifting Height Tower Is 3M Mast, Fork Postitioner,LF1220mm,Pneumaic Tyre ,SeatBelt ,Engish Nameplate
Detailed specification:
Model | CPCD100 | |
Load Capacity(Kg) | 10000 | |
Load Center(mm) | 600 | |
Max lifting height(mm) | 3000 | |
Free Lift(mm) | 210 | |
Mast Lifting Height speed(With Load)mm/s | 310 | |
Tillifing Angles (Front/Rear ) | 6°/ 12° | |
Driving Speed km/h | 0-10,0-30 | |
Drawbar Pull (With Load)N | 57000 | |
Grade ability (With Load)% | 21.2 | |
Min. Turning Radius(mm) | 3950 | |
Min intersecting aisle(mm) | 3540 | |
Min.Turning Radius(mm) | 245 | |
Engine | Model | ISZUZU 6BG1 |
Rated Output KW | 82 | |
Max Torque rpm | 2200 | |
Tire | Front | 4-9.00-20-14PR |
Back | 2-9.00-20-14PR | |
Form Size | Overhead Length(mm) | 5430 |
Overhead Width(mm) | 2245 | |
Height(mm) | 2560 | |
Mast height(mm) | 2845 | |
Wheelbase(mm) | 2800 | |
Tread | Front(mm) | 1600 |
Back(mm) | 1700 | |
Overhang (front)(mm) | 718 | |
Fork transverse adjustment(mm) | 430-2110 | |
Fork Size(L*W*T)(mm) | 8000x1750x1220 | |
Weight(kg) | 12400 | |
