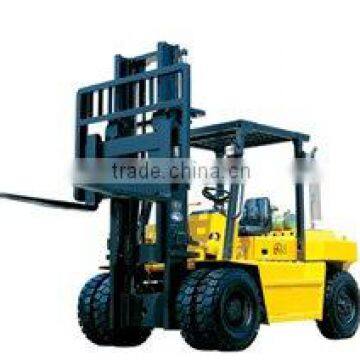

CPCD50A-2 Forklift Truck
- 100 Set / Sets per Month
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Fujian, China | |
| Brand Name | XGMA | Model Number | CPCD50A-2 | |
| Type | Powered Pallet Truck | Power Souce | Diesel Engine | |
| Rated Loading Capacity | 5000KG | Max. Lifting Height | 3000MM | |
| Min. Lifting Height | 160MM | Fork Length | 1200mm | |
| Fork Width | 150mm | Overall Dimensions | 3688x1240x2122 |
Product Description
Specifications
Model CPCD60A-2,CPCD60A-2 fork lift trucks adopted with direct injection diesel engine, are safe, reliable and efficient
Model CPCD60A-2,CPCD60A-2 fork lift trucks adopted with direct injection diesel engine, are safe, reliable and efficient. With hydro-dynamica transmission, planetary rim reducer and stepless shift, the trucks are easy to operate. By means of the fully hydraulic steering system and the steering axle with laterally deposed cylinder, the trucks are characterized with pure roll steering and easy to steer. With small turning radius, the tyres are widely applied at airports, harbors, docks, stations, warehouses, and factories for loading/unloading, stacking and transporting goods in short distance. The truck is especially suitable to the rough road and the places with high operating intensity, such as stone industry and docks. Various domestic and imported attachments are available to meet different demands of our customers.
Technical parameter:
Type | Unit | CPCD50A-2 | |
Rated capacity | kg | 5000 | |
Dead weight | kg | 8300 | |
Standard Fork: L×W×H | mm | 1200×150×60 | |
Turning radius | mm | 3400 | |
Overall dimensions: L×B×H | mm | 4620×1990×2495 | |
Max. Travel speed | Km/h | 26 | |
Gradeability (Full load) | % | 20 | |
Load center distance | mm | 600 | |
Tilt angle of mast (F/B) | ° | 6°/12° | |
Standard distance of forks | mm | 2230 | |
Max lifting height | mm | 3000 | |
Free lifting height | mm | 160 | |
Min. ground clearance | mm | 160 | |
Track (F/R) | mm | 1485/1500 | |
Wheelbase | mm | 2200 | |
Tyre | Front |
| 4×8.25-15-14PR |
Rear |
| 2×8.25-15-14PR | |
Engine | Type |
| LR4108G8 |
Rated power/ speed | Kw/r.p.m | 64/2400 | |
Max. torque/Speed | N.m/r.p.m | 293/1500-1600 | |
