Home > Products > Forklift Trucks > CPCD70BT Forklift Truck

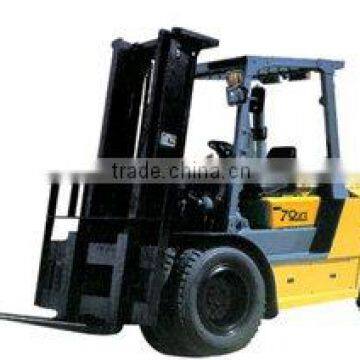

CPCD70BT Forklift Truck
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Fujian, China | |
| Brand Name | XGMA | Model Number | CPCD70BT | |
| Type | Powered Pallet Truck | Power Souce | Diesel Engine | |
| Rated Loading Capacity | 7000KG | Max. Lifting Height | 3000MM | |
| Min. Lifting Height | 190MM | Fork Length | 1200mm | |
| Fork Width | 150mm | Overall Dimensions | 4860x2066x2715 |
Product Description
Specifications
Model CPCD70BT Fork lift truck adopted with direct injection diesel engine, are safe, reliable and efficent. With hydro-dynamic
Model CPCD70BT Fork lift truck adopted with direct injection diesel engine, are safe, reliable and efficent. With hydro-dynamic transmission, planetary rim reducer and stepless shift, the truck are easy to operate. By means of the fully hydraulic steering system and the steering axle with laterally deposed cylinder, the trucks arecharaterized with pure roll steering and easy to steer. With small turning radius, the types are wear-proof. The intergrated chassis makes the truck reliable and durable. The wide view mast allows the drivers a good vision. With the help of pneumatic-oil brake system, the brake is reliable. These trucks are widely applied at airports, harbors, docks, stations, warehouses, and factories for loading/unloading, stacking and transporting goods in short distance. The truck could a load of 8 ton of short time. The truck is especially suitable to the rough road and the places with high operating intensity, such as stone industry and docks. Various domestic and imported attachments are available to meet different demands of our customers.
Technical parameter:
Type | Unit | CPCD70BT | |
Rated capacity | kg | 7000 | |
Dead weight | kg | 9908 | |
Standard Fork: L×W×H | mm | 1200×150×70 | |
Turning radius | mm | 3450 | |
Overall dimensions: L×B×H | mm | 4860×2066×2715 | |
Max. Travel speed | Km/h | 26 | |
Gradeability (Full load) | % | 20 | |
Load center distance | mm | 600 | |
Tilt angle of mast (F/B) | ° | 7°/13° | |
Wheel center to face of forks | mm | 655 | |
Max lifting height | mm | 3000 | |
Free lifting height | mm | 170 | |
Min. ground clearance | mm | 190 | |
Track (F/R) | mm | 1494/1500 | |
Wheelbase | mm | 2400 | |
Tyre | Front |
| 4×8.25-20-14PR |
Rear |
| 2×8.25-15-14PR | |
Engine | Type |
| 6102BG4 |
Rated power/ speed | Kw/r.p.m | 72.8/2400 | |
Max. torque/Speed | N.m/r.p.m | 353/1600-1800 | |
