Home > Products > LED Flood Light for BTS > FG80 80W LED Security Flood Light for Telecommunication BTS Site Security Lighting

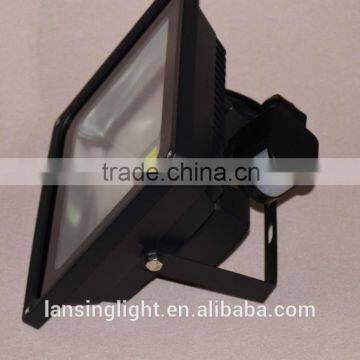

FG80 80W LED Security Flood Light for Telecommunication BTS Site Security Lighting
- Shanghai Port
- T/T Credit Card
You May Like
-
FG20 20W LED Security Flood Light for Telecommunication BTS Site Security Lighting
-
FG50 50W LED Security Flood Light for Telecommunication BTS Site Security Lighting
-
FG30 30W LED Security Flood Light for Telecommunication BTS Site Security Lighting
-
FG60 60W LED Security Flood Light for Telecommunication BTS Site Security Lighting
-
Navigation light/Led marine light/ navigation lantern/led boat lightMarine lantern for buoy, offshore Solar powered navigation
-
HB10 LED Bridge light/LED Navigation light/solar buoy light/marine lantern/navigation lighting
Product Details
Lamp Body Material | Aluminum Alloy | IP Rating | IP65 | |
Place of Origin | Shanghai, China | Brand Name | LANSING | |
Model Number | FG80 |
Product Description
The FG series LED flood light combines high-efficiency LED arrays with reflector optics and good heat dissipation design, provide energy efficient with low cost and less maintenance. Independent lighthead and power module design can make various power consumption from 10W to 200W to meet different application.
Additional two optional available:
When come with photocell, the floodlight is off at daytime and automatically on at nighttime;
When come with PIR detector, the floodlight is off at daytime and turn on only when people or animal approach at nighttime.
Features:
- Scale light body, good heat dissipation and low temperature rise
- Integrated high power LED chip LED lens, pretty light distribution curve and uniform light.
- High quality led power supply, and long life time LED lamp
- Elegant appearance and waterproof
- Tempered glass panel to protect the lighting source
- Adopts optimized structure design and sealing technology, waterproof and dustproof and anti corrosion, which means it can work in a humid environment or in damp/wet places.
- Advances design of driving power, accurate constant current, wide range of inpot voltage, high power factor, and anti-interference.
Input Voltage | AC85V-265V/DC48V/DC24V/DC12V |
Toyal harmonic Distortion | ≤9% |
Power Factor | >0.9 |
Power Efficiency | >87% |
Working Voltage | DC30-36V |
LED quantily | 1pcs |
Led Consumption | 57W |
System Consumption | 63W |
Led Luminous Efficiency | 100LM/W |
Led Initial Flux | WW:6010LM |
PW:6033LM | |
CW:6100LM | |
Lamp' Luminous Efficiency | >85% |
Average llluminance | 367 Lux at Height 2M |
92 Lux at Height 4M | |
41 Lux at Height 6M | |
llluminance Area | 6.3*6.3M at(Height) 2M |
13*13M at(Height) 4M | |
20*20M at(Height) 6M | |
Illuminance Uniformity | >0.6 |
Color Temperature | WW:2700K-3900K |
PW:3900K-6000K | |
CW:6000K-7000K | |
Color Rendering Index | WW:Ra>68 |
| PW,CW:Ra>75 |
Light Distribution | Symmetry/round light spot |
Light Design | LED+Reflector |
Junction Temperature | ≤80℃ |
Working Temperature | -40℃- +55℃ |
Storage Temperature | -25℃- +65℃ |
IP Grade | IP65 |
Working Life-span | 50000H |
Power Liner | 3 core 0.75 |
| Brown: L |
Blue: N | |
Yellow/Geen: G | |
NG | 2.36kg |
GW | 2.7kg |
Product Size(mm): | 288*235*156 |
Package Size(mm): | 298*245*160 |
Color of lamp shell | Gray/Sliver gray |
Certificate | CE |
Applications
- Telecommunication Site
- Security lighting
- Parking Lots
- Architectural Lighting
- ……
