Home > Products > Accessories for Aviation Obstruction Lights > JB02 Junction Box for Aircraft Warning Light/FAA L-810 Obstruction Light/Aviation Warning Light

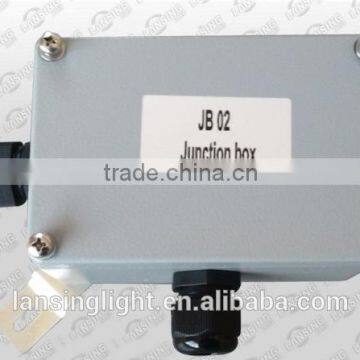

JB02 Junction Box for Aircraft Warning Light/FAA L-810 Obstruction Light/Aviation Warning Light
US$ 0.1 - 99
/ Piece
1 Piece(Min. Order)
- Shanghai port
- T/T Credit Card
You May Like
-
Control Box for Aviation Warning Light
-
MBL10 Flange Mounting Pole for Low Intensity Aviation Obstruction Light
-
JB04 Junction Box for Aircraft Warning Light/ICAO Obstruction Light/Aviation Warning Light
-
Photosensor for Aviation Warning Light
-
TY32D Double LED Solar Powered Aircraft Obstacle Light/aviation Warning Light(Type B)
-
TY10D Double Solar Powered Aviation Obstruction Light/ LED Solar Powered Aircraft Obstacle Light/aviation Warning Light(Type B)
Product Details
| Input Voltage(V) | 85-265VAC;12-60VDC | IP Rating | IP65 | |
| Lamp Body Material | Aluminum Alloy | Place of Origin | Shanghai, China | |
| Brand Name | LANSING | Model Number | JB02 |
Product Description
Single aviation obstruction light
Aircraft warning light
Red beacon light for chinemy
ICAO low intensity type A
JB02 IP65 Junction Box for Aviation Obstruction Light System
Lansing JB0X series junction box is specially designed for integration of aviation obstruction light. 1 way input and up to 4 ways output, the junction box can connect lights in parallel to one way.
Features
- Aluminum alloy enclosure and epoxy coated provide good weather and corrosion resistance
- Better waterproof with IP68 nickel plated brass cable glands
- Lightweight and compact design
- Built-in terminal block and unique PCB board design, no need to jump wires during wiring job
- Built-in earthing terminal
Specification
Specification | JB02 | JB03 | JB04 |
Input and output | |||
Output numbers | 2 | 3 | 4 |
Input numbers | 1 | ||
Cable gland | |||
Material | Nickel Plated Brass | ||
Numbers | 3 | 4 | 5 |
Size | M20/M25(for cable dia. 9-16mm) | ||
Mechanical Structure | |||
Enclosure | Aluminum alloy | ||
Protection | IP65 | ||
Size | 175cmx100cmx68cm | ||
Weight | 0.5KG | ||
Mounting | Two types mounting
| ||
