Home > Products > RF coaxial connectors > SMB Connector Female Clamp for RG316 Cable

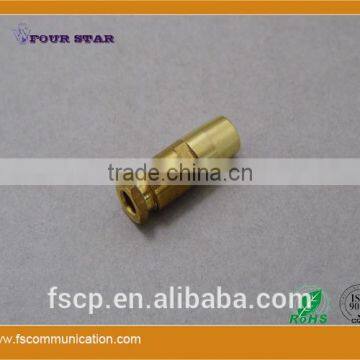

SMB Connector Female Clamp for RG316 Cable
US$ 0.71 - 1.03
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T Credit Card PayPal
You May Like
-
1.6/5.6 Male Clamp Right Angle Connector For BT3002 Cable B
-
SMB Connector Male Crimp for RG316 Cable
-
1.6/5.6 Male Clamp Right Angle Connector For BT3002 Cable A
-
RP TNC connector female flange with extended insulator and pin
-
7/16 Connector Female Bulkhead Clamp for 1/2'' Superflexible Cable
-
7/16 connector female bulkhead clamp for 1/2'' superflexible cable
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Four Star | |
| Model Number | SMB-K1.5 | Type | SMB | |
| Application | RF | Gender | Female |
Product Description
Product Description
SMB Connector Female Clamp for RG316 Cable
| SMB Connector Female Clamp for RG316 Cable | ||
| Model No. | SMB-K1.5 | |
| Interface | IEC 60169-10;CECC 22130;MIL-C-39012 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-4GHz | |
| VSWR | ≤1.30@DC-1000MHz | |
| 3rd Order IM (PIM3) | — | |
| Working Vlotage | 335V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | 1000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥1000MΩ | |
| Center Conductor Retention Force | ≥0.28N | |
| Engagement force | 8-63N | |
| Disengagement force | 8-63N | |
| Contact Resistance | Center Contact ≤6mΩ | Outer Contact ≤1 mΩ |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Au |
| Insulator | PTFE | — |
| Inner Conductor | Beryllium Bronze | Au |
| Resilient Contact | Beryllium Bronze | Au |
| Coupling Nut | — | — |
| Gasket | — | — |
| Cable Clamp | — | — |
| Ferrule | — | — |
| Environmental | ||
| Operating Temperature | -45 ℃~-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | 50ohm RG316/RG174/RG188 Cable | |
