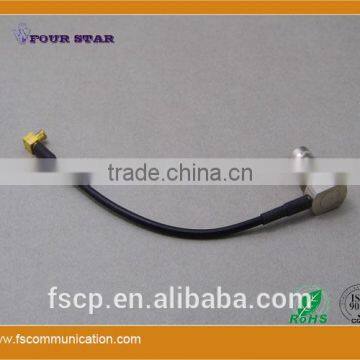

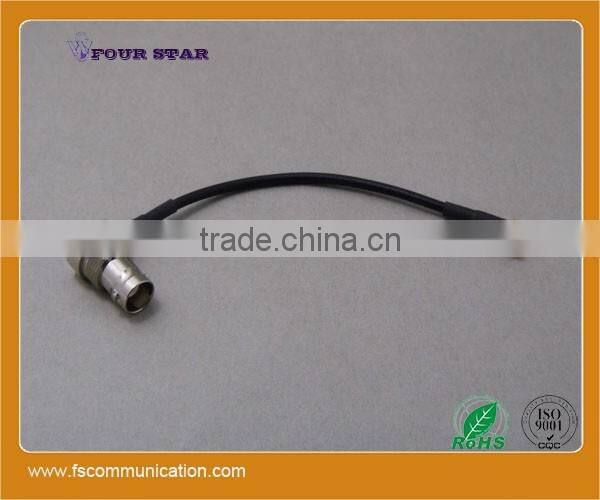

RG174 Cable Assembly With BNC Female Right Angle to MCX Male Right Angle Connector
US$ 1.61 - 2.07
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T Credit Card PayPal
You May Like
-
RG316 Cable Assembly With SMA RP-Female Bulkhead to MCX Male Right Angle Connector
-
RG174 Cable Assembly With MCX Male Right Angle Connector On Both Ends
-
LMR400 Cable Assembly With N Male to N Female Connector
-
1/2'' Superflexible Cable Assembly With 7/16 Male to 7/16 Male Right Angle Connectors
-
1/2'' Superflexible Cable Assembly With 7/16 Male to 7/16 Male Connectors
-
500mm RG316 Cable Assembly With SMB Male Crimp to BNC Female Bulkhead Crimp Connectors
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Four Star | |
| Model Number | BNC-C-KW174/MCX-C-JW174-120 | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
Product Description
| 120mm RG174 Cable Assembly with BNC Female Right Angle to MCX Male Right Angle Connector | ||
| Model No. | BNC-C-KW174/MCX-C-JW174-120 | |

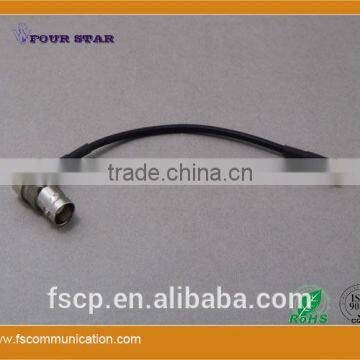

| Connector Type | BNC connector female crimp right angle for RG174 cable | |

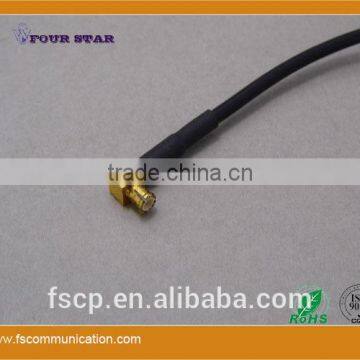

| MCX connector male right angle crimp for RG174 cable | ||
| Cable Type(Name) | RG174 Cable | |
| Cable Length | 120mm (Customized Length Available) | |
| Connectors Interface | IEC 60169-8; IEC 61169-36 | |
| Tipical Frequency Range | DC-3GHz | |
| VSWR | ≤1.25@DC-1GHz | |
| Intermodulation 3rd (PIM3) | — | |
| Durability | ≥500 cycles | |
| Parts Name | Material | Plating |
| Body | Brass | Ni/Au |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni/Au |
| Washer | Brass | Ni/Au |
| Ferrule | Brass | Ni |
| Operating Temperature | -45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
Packaging & Shipping
Our Services
Company Information
FAQ
Contact Us
