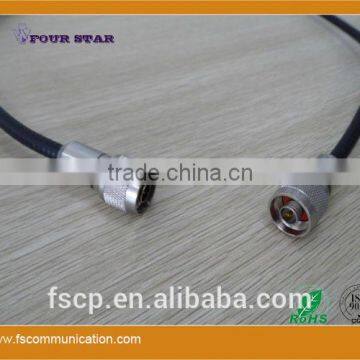

1/4'' Superflexible Cable Assembly With N Male to N Male Connector
US$ 4.03 - 4.81
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T Credit Card PayPal
You May Like
-
1/2'' Superflexible Cable Assembly With N Male to N Male Connector
-
1/2'' Superflexible Cable Assembly With 7/16 Plug to 7/16 Plug Right Angle Connector
-
1/2'' Superflexible Cable Assembly With 7/16 Male to 7/16 Male Connector
-
BT3002 Cable Assembly With SMZ Plug Crimp Connector on Both End
-
BT3002 Cable Assembly With SMZ Male Crimp Connector On Both Ends
-
BT3002 Cable Assembly With BNC Male Crimp Connector On Both Ends
Product Details
| Place of Origin | Jiangsu, China | Brand Name | cable assembly | |
| Model Number | N-J1/4S/N-J1/4S-1000 | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
Product Description
1000mm1/4'' Superflexible Cable Assembly with N Male to N Male Connector | ||
| Model No. | N-J1/4S/N-J1/4S-1000 | |
| connector Type(Name) | N connector male clamp for 1/4'' superflexible cable | |
N connector male clamp for 1/4'' superflexible cable | ||
| Cable Length | 1000mm (Customized Length Available) | |
| Connector Interface | IEC 60169-16; IEC 60169-16 | |
| Operating Frequency | DC-3GHz | |
| VSWR | ≤1.10@DC-3GHz | |
| Insertion Loss | ≤0.25dB @3GHz | |
| Intermodulation 3rd (PIM3) | ≤ -157dBc@2×20W | |
| Durability | ≥500 cycles | |
| Parts Name | Material | Plating |
| Body | Brass | Tri-Metal |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Ag |
| Coupling Nut | Brass | Tri-Metal |
| Gasket | Silicone Rubber | — |
| Shrinkable Tube | PET | — |
| Operating Temperature | -45 ℃-+85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
