Spain Maria Cristina Hotel, automatic revolving door, CE UL ISO14001 certificate

KBB automatic revolving door .

Project name : Hotel Maria Cristina .

Location: Spain.

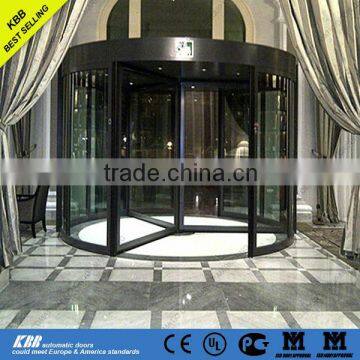

Hotel Maria Cristina is a famous five star hotel in Spain, with Belle Epoque style classical decoration which contains original Roman column, brocade fabrics and chandeliers. 1 unit of KBB automatic revolving door KA023 was installed in this hotel.

Automatic revolving door with the model KA023 is one of KBB best selling revolving doors, at least 1000 units were installed in the hotels, airports, shopping malls, office buildings in the world every year .

Safety functions:

1, Special Load-Bearing Structure

2, Vertical/horizontal safety switch

3, Anti-squeeze

4, Anti-strike

5, Force-sensitive Control

6, Torque Control

7, Panic breakout system

8, Handicap

9, Night Security Door.

Operation features:

1, Continuous working mode

2, Go/Stop working mode

3, Remote control function

Technical Data:

Power supply : 220VAC±10%,50HZ

Rated current :12VAC,50HZ

Rated power : 600W

Down lights : 400W

High speed adjustment range(revolving door) : 1-4r.p.m.

Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m.

Ambient temperature : -30.C – 45.C.

Max relative humidity : 90%.

Total weight <1000Kg

Operating noise ≤ 60db (A)

Specifications:

Key Components:

1, Main control unit - SIEMENS

2, Operation program software – KBB

3, Transducer - SIEMENS

4, Drive unit - SIEMENS

5, Gear box - Sewdrive

6, Deceleration belt – CONTITECH

7, Spot light – PHILIPS

8, Detection radar - BEA, Infrared

9, High precision speed/position radar – HENGSTLER

10, Emergency stop button – KBB

11, Handicap button – KBB

12, Curved glass – YAOPI

13, Planar glass – YAOPI

14, Aluminium frame profile - JIHUA
