UAE Ubora Tower, office building, security glass, aluminium frame, CE UL ISO9001 certificate

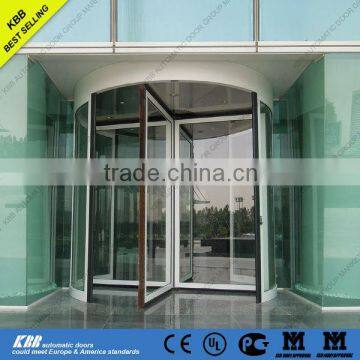

KBB automatic revolving door with security glass and aluminium frame

Project name :   Ubora Tower .

Location :   UAE .

KA023 is one of KBB best selling automatic revolving door which used aluminium door frame, security tempered glass and security laminated glass, they are welcomed so well that at least 1000 units were installed in the banks, airports, hotels,  shopping malls, office buildings in the world every year .

Safety functions:

1, Special Load-Bearing Structure

2, Vertical/horizontal safety switch

3, Anti-squeeze

4, Anti-strike

5, Force-sensitive Control

6, Torque Control

7, Panic breakout system

8, Handicap

9, Night Security Door.

Operation features:

1, Continuous working mode

2, Go/Stop working mode

3, Remote control function

Technical Data:

Power supply : 220VAC±10%,50HZ

Rated current :12VAC,50HZ

Rated power : 600W

Down lights : 400W

High speed adjustment range(revolving door) : 1-4r.p.m.

Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m.

Ambient temperature : -30.C – 45.C.

Max relative humidity : 90%.

Total weight <1000Kg

Operating noise ≤ 60db (A)

Specifications:

Key Components:

1, Main control unit - SIEMENS

2, Operation program software – KBB

3, Transducer - SIEMENS

4, Drive unit - SIEMENS

5, Gear box - Sewdrive

6, Deceleration belt – CONTITECH

7, Spot light – PHILIPS

8, Detection radar - BEA, Infrared

9, High precision speed/position radar – HENGSTLER

10, Emergency stop button – KBB

11, Handicap button – KBB

12, Curved glass – YAOPI

13, Planar glass – YAOPI

14, Aluminium frame profile - JIHUA
