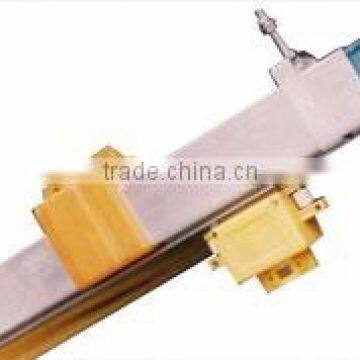

HFJ Series Aluminum Alloy Multipole Sliding Contact Line

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Serial number	Model	The number of poles	Sectional area mm²	Interception (A)	Size mm	DC resistance /km	Impedance/km	The three-phase voltage drop to 380(%nm)
1	HFJ-10-3-5/50	3~5	10	50	57×80	1.23	1.91	4.26
2	HFJ-16-3-5/50	3~5	16	80	57×80	1.16	1.157	3.76
3	HFJ-25-3-5/100	3~5	25	100	57×80	0.71	0.725	2.93
4	HFJ-35-3-5/130	3~5	35	130	57×80	0.51	0.536	2.2
5	HFJ-50-3-5/170	3~5	50	170	57×80	0.36	0.385	1.91
6	HFJ-70-3-5/210	3~5	70	210	57×80	0.26	0.287	1.78
7	HFJ-10-3-7/50	3~7	10	50	88×62	1.81	1.91	4.26
8	HFJ-16-3-7/80	3~7	16	80	105×65	1.16	1.157	3.76
9	HFJ-25-3-7/100	3~7	25	100	105×65	0.72	0.725	2.93
10	HFJ-35-3-7/130	3~7	35	130	105×65	0.52	0.536	2.2
11	HFJ-10-3-10/50	3~10	10	50	105×65	1.83	1.91	4.86
12	HFJ-25-3-10/100	3~10	25	106	105×65	0.72	0.725	2.93
13	HFJ-10-9-16/50	9~16	10	50	145×95	1.8	1.91	4.26
14	HFJ-20-9-16/85	9~16	20	85	145×95	0.65	0.85	3.42
15	HFJ-70-3/210	3	70	210	95×75	0.26	0.287	3.16
16	HFJ-95-3/270	3	95	270	95×75	0.21	0.225	2.87
17	HFJ-120-3-3/320	3	120	320	95×75	0.16	0.174	2.77
18	HFJ-150-3-3/360	3	150	360	95×75	0.11	0.128	2.33
19	HFJ-70-4-5/210	4~5	70	210	114×80	0.287	0.287	3.16
20	HFJ-95-4-5/270	4~5	95	270	114×80	0.21	0.225	2.87
21	HFJ-120-4-5/320	4~5	120	320	114×80	0.16	0.174	2.77
22	HFJ-150-4-5/360	4~5	150	360	114×80	0.11	0.128	2.33
