Product Details
| Condition | New | Type | Resistance Furnace | |
| Usage | Heat Treatment Furnace | Place of Origin | Henan, China | |
| Brand Name | ZHONGLI | Model Number | RX3-30-9 | |
| Voltage | 380 V, can be customized according to user's needs | Power(W) | 15KW | |
| Dimension(L*W*H) | 1450mm*950mm*850mm | Weight | 2000kg | |
| Certification | ISO9001:2008 | Warranty | 1 Year | |
| After-sales Service Provided | No overseas service provided |
Product Description

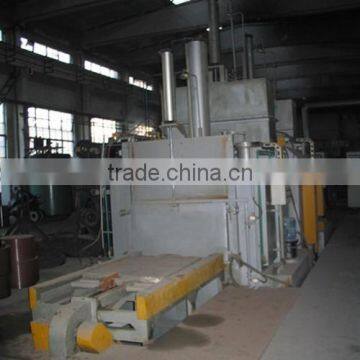

RX3 series box type resistance furnaces for heat treating
Brief
RX3 series box type resistance furnaces for heat treating is standard energy-saving batch type furnace,using the following heat treatment processes: quenching, tempering, annealing and normalizing heat treatment,etc.
Application field
RX3 series box type resistance furnaces for heat treating mainly used for high chromium, high manganese steel castings, ductile iron, roll, steel ball, crusher hammers, wearing plate, flange and various mechanical parts. Can also suitable formetallic material heat treatment in various colleges, universities and research institutes.
Advantages
1.Low heat conduction and heat capacity;
2.Excellent thermal stability and thermal insulation;
3.Good heat preservation effect and temperature uniformity.
Main technical parameters of RX3 series box type resistance furnaces for heat treating
Model | Rated power(KW) | Rated voltage (V) | Rated temperature(℃) | Phase | Furnace hearth size(L*W*H)(mm) | Max.loading capacity (kg) | Weight (kg) |
RX3-15-9 | 15 | 380 | 950 | 3 | 650*300*250 | 80 | 1100 |
RX3-30-9 | 30 | 380 | 950 | 3 | 950*450*350 | 200 | 2000 |
RX3-45-9 | 45 | 380 | 950 | 3 | 1200*600*400 | 400 | 2500 |
RX3-60-9 | 60 | 380 | 950 | 3 | 1500*750*450 | 700 | 4500 |
RX3-75-9 | 75 | 380 | 950 | 3 | 1800*900*550 | 1200 | 5200 |
RX3-20-12 | 20 | 380 | 1200 | 3 | 650*300*250 | 50 | 1400 |
RX3-45-12 | 45 | 380 | 1200 | 3 | 950*450*350 | 100 | 2210 |
RX3-65-12 | 65 | 380 | 1200 | 3 | 1200*600*400 | 200 | 2600 |
RX3-90-12 | 90 | 380 | 1200 | 3 | 1500*750*450 | 400 | 3900 |
RX3-115-12 | 115 | 380 | 1200 | 3 | 1800*900*550 | 600 | 4900 |
RX3-14-13 | 14 | 380 | 1350 | 3 | 520*220*220 | 50 | 635 |
RX3-25-13 | 25 | 380 | 1350 | 3 | 600*280*300 | 80 | 1200 |
RX3-37-13 | 37 | 380 | 1350 | 3 | 810*550*370 | 100 | 1920 |
Remarks:various size of RX3 series box type resistance furnaces for heat treating can be designed and manufactured as user’s needs.
