OEM Pit Type Aluminum Alloy Gas Carburizing Furnace
- Any port of China.
- T/T Credit Card
You May Like
-
Sealed Chamber Carburizing Quenching Furnace
-
High Quality Car Gas Vacuum Carburizing Furnace
-
Continuous Carbonization Furnace Manufacturer
-
Hot Selling Wire Bell Type Annealing Furnace for Heat Treatment
-
High Efficiency Pit-Type Carbonitriding Industrial Resistance Furnace
-
Batch-Type Well Type Industrial Carburizing Furnace for Copper Wire
Product Details
| Condition | New | Type | Resistance Furnace | |
| Usage | Heat Treatment Furnace | Place of Origin | Henan, China | |
| Brand Name | ZHONGLI | Model Number | RQ3-90-9 | |
| Voltage | 380V,also can provide as user's needs. | Power(W) | 90kw | |
| Dimension(L*W*H) | Diameter:600mm; Depth:900mm | Weight | 3700kg | |
| Certification | ISO9001:2008 | Warranty | 1 year | |
| After-sales Service Provided | No overseas service provided |
Product Description
OEM Pit Type Aluminum Alloy Gas Carburizing Furnace
Brief
RQ3 series pit type carburizing furnace is new type and energy-saving batch type furnace,working temperature is 950℃,using the following heat treatment, carburizing, nitriding and carbonitriding, the workpiece is vertically loaded in furnace tank for heating, not easy to deformation. Pit type furnace is usually placed under the ground plane in the workshop, also is placed above the ground plane, or ground level fluctuation in each half.
Application field
Mainly used for rod and long axis steel mechanical parts.
Structure
This furnaceis mainly composed of furnace shell, furnace lining, heating device, muffle tank, loading frame, the furnace cover, and furnace cover lifting mechanism,etc. Furnace body is cylindrical deep well.
Advantages
1. The workpiece is vertically loaded in furnace tank for heating,not easy to deformation;
2. Good sealing, easy operation and maintain, long working service life.
3. Using advanced protective atmosphere control system, including carbon control instrument and oxygen probe, ensure that the workpiece carbonitriding layer uniform and high precision.

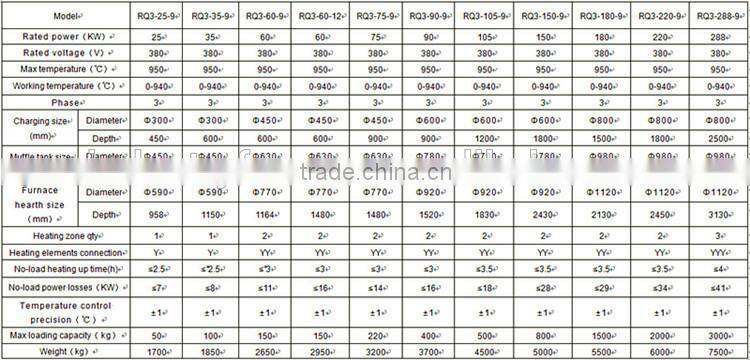

Main technical parameters:
Note: Various size pit type furnace can be also designed and manufactured as user's needs.
