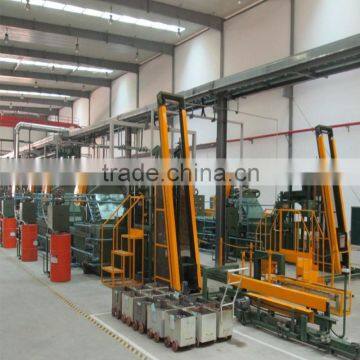

Continuous Conveyor Mesh Belt Furnace for Standard Parts/hardware
- Any port of China.
- T/T
You May Like
-
Continuous Heat Treatment Pusher Furnace
-
AICHELIN Technolgogy Continuous Conveyor Mesh-belt Furnace for Wire
-
Easy to Operate Continuous Conveyor Belt Furnace for Quenching and Tempering
-
Advanced Technology Continuous Conveyor Mesh Belt Muffle Furnace for Wire
-
Advanced Electric Heat Equipment Treatment Industrial Resistance Furnace
-
Made in China Electric Heat Treatment Furnace Equipment,electric Heat Treatment Furnace
Product Details
| Condition | New | Type | Resistance Furnace | |
| Usage | Heat Treatment Furnace | Place of Origin | Henan, China | |
| Brand Name | ZHONGLI | Model Number | RCWM-60-9 | |
| Voltage | 380V,also can be customized according to user's needs | Power(W) | 450kw | |
| Dimension(L*W*H) | 11000mm*2000mm*1500mm | Weight | 1500kg | |
| Certification | ISO9001:2008 | Warranty | 1 year | |
| After-sales Service Provided | No overseas service provided |
Product Description
Continuous conveyor mesh belt furnace for standard parts and hardware
Brief
The continuous conveyor mesh belt furnace for standards and hardware is heat treatment production line, is primarily used for heat treating small bulk parts, using the following heat treatment processes:
1.Hardening and Tempering
2.Austempering
3.Annealing from forging heat
4.Isothermal Annealing
5.Normalizing and Recrystallizing
6.Hardening
7.Tempering
8.Carburizing
Structure
This production line mainly consist of feeding machine, quenching furnace, elevator, quenching tank, cleaning machine, dryers, tempering furnace and electric control system, etc.
Application field
This furnace are well suited for heat treating;
1.Standard parts and hardware,for instance, bolts and nuts
2.Small pressed parts
3.Rings
4.Punched parts
5.Castings
6.Forged parts
Advantages
1.Internal conveyor belt, wherever possible; this results in energy savings by eliminating the need for energy to heat up the belt repeatedly; less wear on the belt through uniform temperature ad use of stored heat; long belt life;
2.Internal conveyor belt is available in different cast link designs;
3.Gas tight furnace design heated by radiant tubes;
4.Loading devices for different loading techniques handling the product carefully (soft-handling).
Metering and weighing is performed part specific and adjusted for furnace capacity;
5.Integrated pre-wash with dephosphatizing and intermediate washing technique, preferably, with centrifuge washers. It is also possible to use spiral washers, continuous washers or washers in combination;
6.Quench and cooling equipment for all customary media, with removal of the parts via conveyor belts;
7.The process in continuous, conveyor belt furnace runs automatically. with the characteristic of large capacity, high efficiency, and saving labor force.
Main technical parameters of heating furnace
Model | Rated power (kw) | Rated temperature (℃) | Width of mesh belt (mm) | Heating zone length(mm) | Effective height(mm) | Capacity(kg/h) | Mesh belt speed(mm/min) | |
Hardening | Carburizing 0.1-0.2mm | |||||||
RCWM-45-9 | 45 | 950 | 220 | 2100 | 90 | 40-60 | 20-30 | 17.5~200 |
RCWM-60-9 | 60 | 950 | 300 | 2400 | 90 | 60-100 | 30-50 | 17.5~200 |
RCWM-70-9 | 70 | 950 | 300 | 3200 | 90 | 80-120 | 40-60 | 17.5~200 |
RCWM-100-9 | 100 | 950 | 400 | 3600 | 90 | 120-180 | 60-90 | 17.5~200 |
RCWM-120-9 | 120 | 950 | 400 | 4400 | 90 | 180-220 | 90-110 | 17.5~200 |
RCWM-150-9 | 150 | 950 | 400 | 4800 | 90 | 220-250 | 110-130 | 17.5~200 |
RCWM-180-9 | 180 | 950 | 500 | 4800 | 90 | 250-300 | 130-150 | 17.5~200 |
Note: Various size furnace can be designed and manufactured as user's needs.
