Home > Products > Carburizing furnace > Manufacturer Provide Continuous Conveyer Carbonization Electric Furnace for Sale
Manufacturer Provide Continuous Conveyer Carbonization Electric Furnace for Sale
- Any port of China.
- T/T
You May Like
-
High Temperature Box-type Carburizing Furnace for 1200 Degree
-
High Quality Box Type Vacuum Carburizing Furnace
-
Large Load Capacity Non-oxidation Spheroidizing Heat Treatment Electric Oven for Steel
-
Extraordinary Advantages for the End-user,field Heat Treatment Furnace,RT2-2000-9bogie-hearth Resistance Furnace
-
High Levels of Performance, Reliability ,spheroidizing Heat Treatment Furnace,RT2-2000-9bogie-hearth Resistance Furnace
-
Reduced Batch Times of 30 - 70 %,electrical Resistance Furnace,RT2-65-9 Bogie-hearth Resistance Furnace
Product Details
| Condition | New | Type | Resistance Furnace | |
| Usage | Heat Treatment Furnace | Place of Origin | Henan, China | |
| Brand Name | ZHONGLI | Model Number | RCWM-120-9 | |
| Voltage | 380v,also can be customized according to user's needalso can be custom | Power(W) | 120kw | |
| Dimension(L*W*H) | 4400mm*400mm*90mm | Weight | 2000kg | |
| Certification | ISO9001:2008 | Warranty | 1 year | |
| After-sales Service Provided | No overseas service provided |
Product Description
Manufacturer Provide Continuous Conveyer Carbonization
Electric Furnace for Sale
Brief
The continuous mesh belt furnace is heat treatment production line, is primarily used for heat treating small bulk parts, using the following heat treatment processes:
1.Hardening and Tempering
2.Austempering
3.Annealing from forging heat
4.Isothermal Annealing
5.Normalizing and Recrystallizing
6.Hardening
7.Tempering
8.Carburizing
Structure
This production line mainly consist of feeding machine, quenching furnace, elevator, quenching tank, cleaning machine, dryers, tempering furnace and electric control system, etc.
Application field
This furnaces are well suited for heat treating;
1.Standard parts and hardware,for instance, bolts and nuts
2.Small pressed parts
3.Rings
4.Punched parts
5.Castings
6.Forged parts
Advantages
1.Internal conveyor belt, wherever possible; this results in energy savings by eliminating the need for energy to heat up the belt repeatedly; less wear on the belt through uniform temperature ad use of stored heat; long belt life;
2.Internal conveyor belt is available in different cast link designs;
3.Gas tight furnace design heated by radiant tubes;
4.Loading devices for different loading techniques handling the product carefully (soft-handling). Metering and weighing is performed part specific and adjusted for furnace capacity;
5.Integrated pre-wash with dephosphatizing and intermediate washing technique, preferably, with centrifuge washers. It is also possible to use spiral washers, continuous washers or washers in combination;
6.Quench and cooling equipment for all customary media, with removal of the parts via conveyor belts;
7. The process in continuous, conveyor belt furnace runs automatically. with the characteristic of large capacity, high efficiency, and saving labor force.

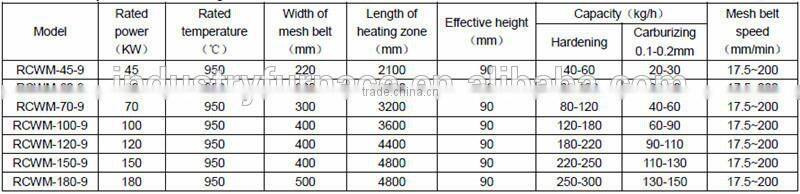

Main technical parameters of heating furnace
Our Service:
1. Experienced staffs answer all your questions in time.
2. Customized design is available.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
4. Special discount and protection of sales are provided to our distributor.
5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
FAQ:
1. What’s your MOQ?
At present we haven’t strict policy for this, so welcome orders with any quantity.
2. Are you a manufacturer or trade company?
We are a manufacturer. You can assure that we are a producer with full experience doing business in domestic and oversea.
3. How about packaging? If machine damaged, what should I do ?
Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement. Damage hasn’t happened before, if happen, we will arrange replacement.
4. Why choose us?
a.We are a manufacturer so that we have the punctual delivery time.
b.One sales representative serves you from inquiry to products shipped out.Communicate directly and conveniently.
c.Professional R&D team.
d.Strict QC.
e.Smooth shipping.
f.Rich experience. We always do OEM services.Our customers are all over the world like USA, UK, Russia, Korea, Southeast Asia, etc. so that we are quite experienced.
g. Fast reply: Our team will respond your requests within 8-working-hour.
Contact Us
- Xinxiang Zhongli Furnace Industry Co., Ltd.
- Contact nameJane Sun Chat Now
- Phone0086-373-3800100
- AddressXiaodian Industry Zone East, Xinxiang, Henan
