Saving Energy Well Batch Type Heat Treating Carburizing Industrial Stove
- Any port of China.
- T/T
You May Like
-
Hot Selling Well-Type Stainless Steel Pipe Vacuum Carbonitriding Resistance Furnace
-
Hot Selling Well-Type Resistance Gas Vacuum Carburizing Furnace
-
Hot Selling High Temperature Well-Type Vacuum Carburizing Resistance Stove
-
Large Loading Capacity Batch Type Pit Carbonitriding Furnace
-
OEM RJZ3 Series Pre-vacuum Pit Annealing Electric Furnace
-
Mamufcturer Provide Pit Type Gas Carburizing Electric Furnace
Product Details
| Condition | New | Type | Resistance Furnace | |
| Usage | Heat Treatment Furnace | Place of Origin | Henan, China | |
| Brand Name | ZHONGLI | Model Number | RQ3-25-9 | |
| Voltage | 380V,also can provide as user's needs. | Power(W) | 25kw | |
| Dimension(L*W*H) | Diameter:300mm; Depth:450mm | Weight | 1700kg | |
| Certification | ISO9001:2008 | Warranty | 1 year | |
| After-sales Service Provided | No overseas service provided |
Product Description
Saving Energy Well Batch Type Heat Treating Carburizing
Industrial Stove
Brief
RQ3 series well type carburizing stove is new type and energy-saving batch type furnace,working temperature is 950℃,using the following heat treatment, carburizing, nitriding and carbonitriding, the workpiece is vertically loaded in furnace tank for heating, not easy to deformation. Pit type furnace is usually placed under the ground plane in the workshop, also is placed above the ground plane, or ground level fluctuation in each half.
Application field
Mainly used for rod and long axis steel mechanical parts.
Structure
This stove is mainly composed of furnace shell, furnace lining, heating device, muffle tank, loading frame, the furnace cover, and furnace cover lifting mechanism,etc. Furnace body is cylindrical deep well.
Advantages
1. The workpiece is vertically loaded in furnace tank for heating,not easy to deformation;
2. Good sealing, easy operation and maintain, long working service life.
3. Using advanced protective atmosphere control system, including carbon control instrument and oxygen probe, ensure that the workpiece carbonitriding layer uniform and high precision.

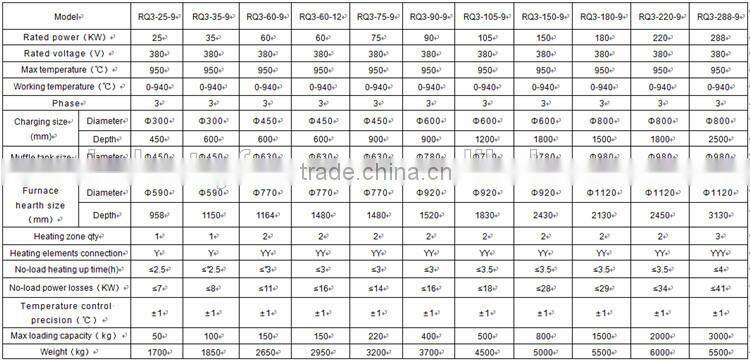

Main technical parameters:
Note: Various size Well type stove can be also designed and manufactured as user's needs.
