Pit type industrial electrical resistance furnace for quenching tempering
- 500 Set / Sets per Month
- Any port of China.
- T/T
You May Like
-
Bell type bright annealing furnace
-
Batch type bell furnace for bright annealing heat treatment
-
Bell type furnace for bright annealing heat treament
-
High Quality Bell Type Electric Annealing Furnace/Bell Type Furnace
-
Hign Efficiency Bell Type Vacuum Bright Annealing Furnace
-
Hot Selling Bell Type Annealing Furnace for Copper Strip and Tube
Product Details
| Condition | New | Type | Resistance Furnace | |
| Usage | Heat Treatment Furnace | Place of Origin | Henan, China | |
| Brand Name | ZHONGLI | Model Number | CLZ-60-7 | |
| Voltage | 380 V, can be customized according to user's needs | Power(W) | 60KW | |
| Dimension(L*W*H) | Diameter:1100mm, Depth:1500mm | Weight | 900KG | |
| Certification | ISO9001:2008 | Warranty | 1 Year | |
| After-sales Service Provided | No overseas service provided |
Product Description

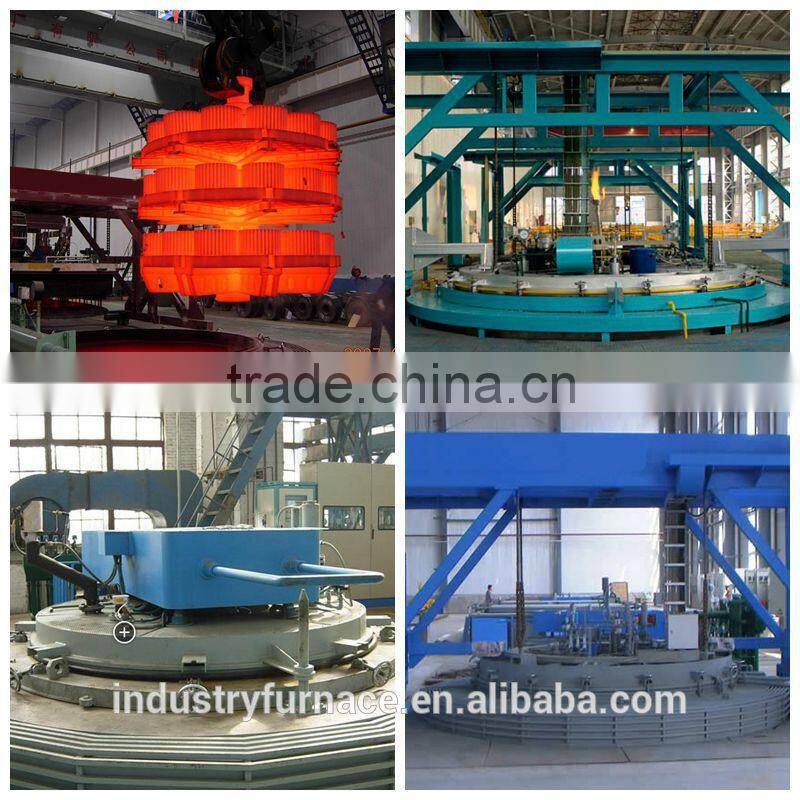

Pit type industrial electrical resistance furnace
Brief
Pit type industrial electrical resistance vacuum furnace is energy-saving and high precision temperature control heat treatment furnace, using the following heat treatment process, bright non-oxidation and no decarburization annealing and tempering under protective atmosphere.
Application field
Pit type industrial electrical resistance vacuum furnace mainly used for carbon steel, alloy steel, non-ferrous metal parts, plate, strip and wire material for annealing, bright non-oxidation and no decarburization annealing and tempering under protective atmosphere, especially suitable for red copper and brass alloy materials.
Structure
Pit type industrial electrical resistance vacuum furnace is mainly composed of furnace body, heating device, stainless steel muffle tank, the furnace cover and furnace cover lifting mechanism, vacuum sealing motor, electrical control system and protective atmosphere device.
Advantages
Pit type industrial electrical resistance vacuum furnace using the protective atmosphere, ensure that the workpiece no oxidation, no decarburization in the process of heat treatment.
Main technical parameters of pit type industrial electrical resistance furnace
| Model | CLZ-36-7 | CLZ-60-7 | CLZ-75-7 | CLZ-90-7 | |
| Rated power(KW) | 36 | 60 | 75 | 90 | |
| Rated voltage(V) | 380 | 380 | 380 | 380 | |
| Max.temperature(℃) | 700 | 700 | 700 | 700 | |
| Working temperature(℃) | 650 | 650 | 650 | 650 | |
| Phase | 3 | 3 | 3 | 3 | |
| Furnace hearth size(mm) | Diameter | φ500 | φ600 | φ800 | φ1000 |
| Depth | 700 | 1000 | 1200 | 1400 | |
| Heating element connection | Y | Y | Y | Y | |
| No-load heating up time(h) | ≤1 | ≤1 | ≤1.2 | ≤1.5 | |
| No-load furnace power losses(KW) | ≤8 | ≤11 | ≤14 | ≤16 | |
| Temperature control precision(℃) | ±1 | ±1 | ±1 | ±1 | |
| Furnace temperature uniformity (℃) | ±5-8 | ±5-8 | ±5-8 | ±5-8 | |
| Max.loading capacity(kg) | 100 | 150 | 220 | 400 | |
Remark:various size electrical resistance furnace can be designed and manufactured as user’s needs.
