Home > Products > Analog Camera > Kendom Analog Security Camera SONY CCD or CMOS Sensor Bullet Security Camera 3-Axis Design of Bracket Outdoor Camera
Kendom Analog Security Camera SONY CCD or CMOS Sensor Bullet Security Camera 3-Axis Design of Bracket Outdoor Camera
- Shenzhen
You May Like
-
Kendom IR Array Waterproof Camera (IP66) Array Led Camera 3.6mm Fixed Lens Cctv Camera Array Change 4/6/8mm Big Lens Support
-
New Top 10 Cctv Cameras Full hd Cctv Camera SONY CCD or CMOS Sensor Security Camera Color: White / Metal Gray / Black
-
Weatherproof Security Cctv Camera ir Bullet 600/700/700WDR/800/1300TVL
-
Kendom CCTV Camera 2.8-12mm Varifocal Lens Indoor Dome Camera 600/700/800TVL/1.0/1.3MP IP66 Dome Camera
-
IP66 CCTV Dome Camera Outdoor Waterproof Dome Camera KENDOM CCTV Camera
-
Kendom IP65 CCTV Camera 600/700/700WDR/800/1300TVL CCD Camera Analog Cctv Dome Camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | Kendom | |
| Model Number | KD-IW3024MF | Type | Other, Analog Camera, Metal Bullet Camera | |
| Style | Bullet Camera | Sensor | CMOS | |
| Technology | Infrared | Special Features | Waterproof / Weatherproof |
Product Description

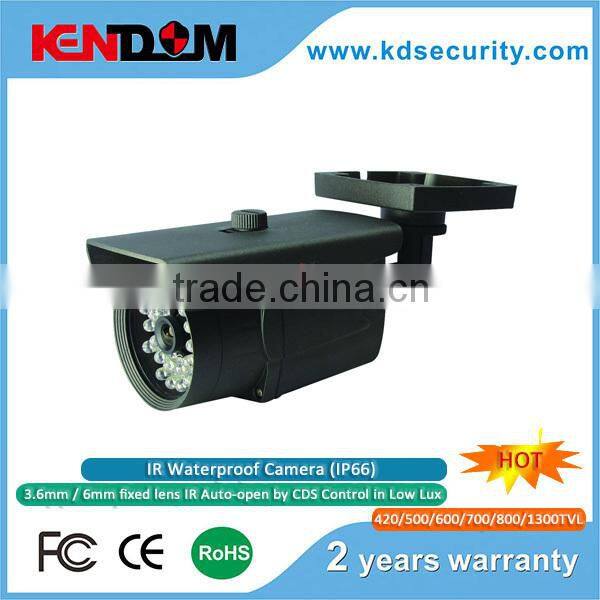

Kendom Analog security camera SONY CCD or CMOS sensor bullet security camera 3-Axis design of bracket outdoor camera
Product Features:
1) CCD: 1/3” SONY CCD,
2) Resolution: 600/ 700/ 700WDR/ 800/ 1300TVL
3) Lens: 3.6mm varifocal lens,
4) Material: Aluminium alloy casing
5) IR Auto-open by CDS Control in Low illumination
Application Places:
Apply to the financial, supermarket, telecommunications, government, schools, airports, factories, hotels, museums and other places of requirement of high-definition.

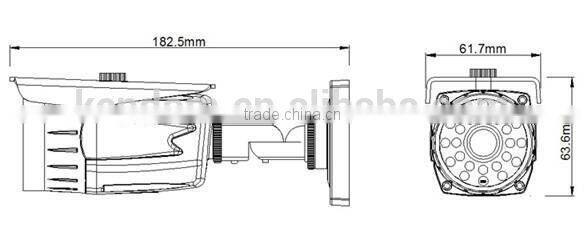

Structure Chart:

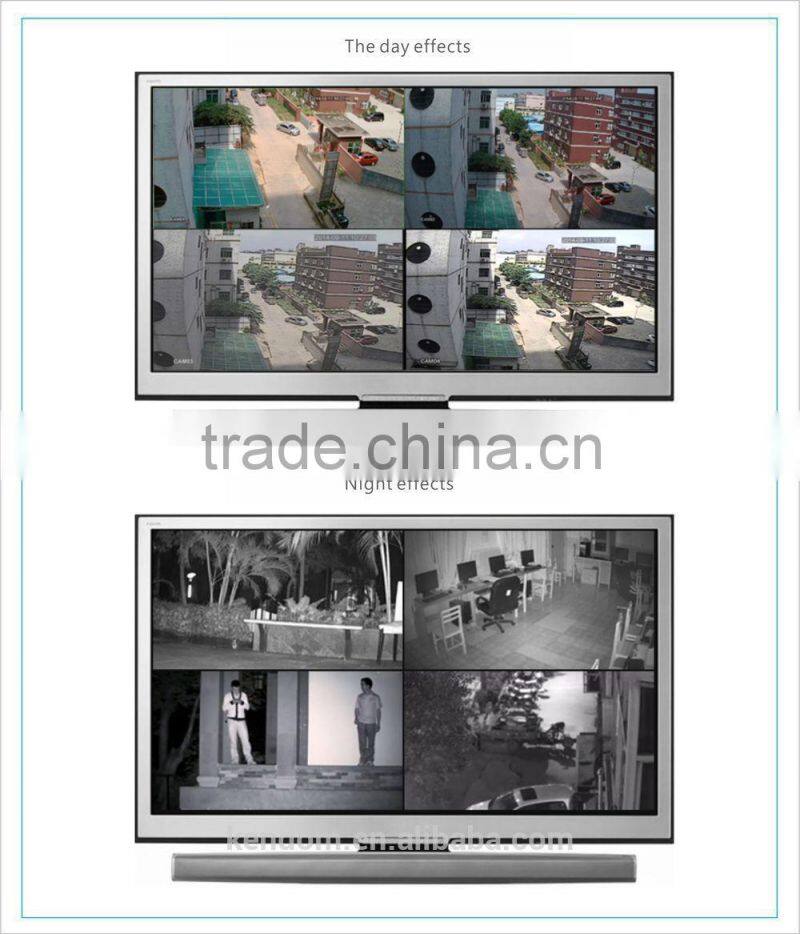

Picture Show:
Technical Parameter:
Model | KD- IW3024MF | |||
Type | IR Weather-proof Camera | |||
Horizontal Resolution | WDR 700TVL | 700TVL | 600TVL | 420TVL |
Effective Pixels (HxV) | PAL:976×582 NTSC: 976x494 | PAL:976×582 NTSC: 976x494 | PAL:752×582 NTSC:768×494 | PAL:500×582 NTSC:510×492 |
Signal System | PAL / NTSC | |||
Image Sensor | 1/3"SONY 662/663 CCD | 1/3"Sony 810/811 CCD | 1/3"Sony 638/639 CCD | 1/3"Sony 632/633 CCD |
Digital Signal Processor | SONY Effio-P DSP | SONY Effio-E DSP | Nextchip 2090 DSP | Sony 3142 DSP |
Mini Illumination | 0.02lux(IR on) 0.00lux(IR off) | 0.02lux(IR on) 0.00lux(IR off) | 0.05lux(IR on) 0.00lux(IR off) | 0.01lux(IR on) 0.00lux(IR off) |
Lens | 3.6/6mm fixed lens | |||
IR LEDs | 5X24PCS | |||
Night Vision | 10-20M | |||
OSD | OSD | OSD | OSD | - |
WDR | WDR | D-WDR | D-WDR | - |
DNR | 3D-DNR | 3D-DNR | 2D-DNR | - |
AES | PAL=1/50 ~1/100,000sec;NTSC=1/60 ~1/100,000sec | |||
S/N Ratio | > 48dB(Auto Gain Off) | |||
BLC | On/Off | On/Off | On | On |
AGC | Auto/Manual/Off | Auto/Manual/Off | Auto | Auto |
White Balance | ATW/Manual/Auto | ATW/Manual/Auto | ATW | ATW |
Video Output | 1.0V P-P,75Ω | |||
Operating Temperature | -10 ~ 50℃(relative humidity: max95%) | |||
Power Voltage | DC12V±10% | |||
Suggest Power Adaptor | DC12V/1A | |||
IP Range | IP66 | |||
Material | Aluminum alloy | |||
Dimension | 183(L) x62(W) x64(H)mm | |||
Weight | 0.45KG | |||
Guarantee | 2 years | |||
Certifications:
Warranty
a.24 Months From Shipping Date;
b.24 Months, any defective product caused by non-artificial reason we will get repaired or replaced for free;
OEM & ODM Services
a. Including Label,Manual,Packages,Logo Printing and Special Outside Color and so on;
Payment Terms
a. Telegraphic Transfer (T/T)
b. Paypal
4% commission charges will be added into the amount;
