Home > Products > Analog Camera > New Casing IR Array Camera CMOS 1300TVL High Resolution With Bottom Price CCTV Analogue Camera
New Casing IR Array Camera CMOS 1300TVL High Resolution With Bottom Price CCTV Analogue Camera
- Shenzhen
You May Like
-
NEW Arrivals White Popular Casing CMOS 1300TVL Security Camera for Indoor Use Dome Camera
-
IN STOCK!!! Beautiful Casing Eyeball Dome Camera 3.6/6MM Fixed Lens 30M IR Distance, SONY 138COMS + 8520 DSP 1300TVL
-
PROMOTION 2015 HOT Model!!! Eyeball Dome 600/700/700WDR/800/1300 TVL Plastic Security Camera, CCTV Analog, Best Price Ever
-
IR Plastic Dome Camera 3.6mm / 6mm Fixed Lens 20m IR Range Security Camera System, Security Product
-
2015 Burst Sells SONY CCD or CMOS Sensor Plastic Dome 2.8-12mm 2MP Vari-focal Lens/ Security Surveillance Camera
-
Kendom Promotion Hot in This Summer Plastic Dome Camera, Nice Design With Bottom Price CCD or CMOS Camera 700/800/1300TVL
Product Details
| Place of Origin | Guangdong, China | Brand Name | Kendom | |
| Model Number | KD-ID7020PF | Type | Other, Analog Camera, Plastic Dome Camera | |
| Style | Dome Camera | Sensor | Other, CCD or CMOS | |
| Technology | Infrared | Special Features | Other, Plastic |
Product Description

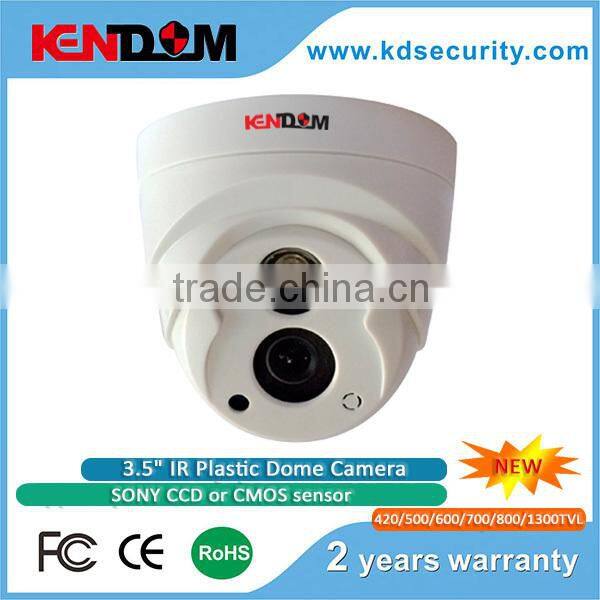

New Casing IR Array Camera CMOS 1300TVL High Resolution with Bottom Price CCTV Analogue camera
Product Features:
1) CCD: 1/3” SONY CCD,
2) Resolution: 600/ 700/ 700WDR/ 800/ 1300TVL
3) Lens: 3.6mm/6mm fixed lens,
4) Material: Plastic casing
5) IR Auto-open by CDS Control in Low illumination
Application Places:
Apply to the financial, supermarket, telecommunications, government, schools, airports, factories, hotels, museums and other places of requirement of high-definition.
Picture Show:
Technical Parameter:
Model | KD-ID1011PF | |||
Horizontal Resolution | WDR 700TVL | 700TVL | 600TVL | 420TVL |
Effective Pixels (HxV) | PAL:976×582 | PAL:976×582 | PAL:752×582 | PAL:500×582 |
NTSC: 976x494 | NTSC: 976x494 | NTSC:768×494 | NTSC:510×492 | |
Signal System | PAL / NTSC | |||
Image Sensor | 1/3"SONY 662/663 CCD | 1/3"Sony 810/811 CCD | 1/3"Sony 638/639 CCD | 1/3"Sony 632/633 CCD |
Digital Signal Processor | SONY Effio-P DSP | SONY Effio-E DSP | Nextchip 2090 DSP | Sony 3142 DSP |
Mini Illumination | 0.02lux(IR on) 0.00lux(IR off) | 0.02lux(IR on) 0.00lux(IR off) | 0.05lux(IR on) 0.00lux(IR off) | 0.01lux(IR on) 0.00lux(IR off) |
Lens | 3.6/6mm fixed lens | |||
IR LEDs | 1pcs powerful Array IR LED | |||
Night Vision | 15M | |||
OSD | OSD | OSD | OSD | - |
WDR | WDR | D-WDR | D-WDR | - |
DNR | 3D-DNR | 3D-DNR | 2D-DNR | - |
AES | PAL=1/50 ~1/100,000sec;NTSC=1/60 ~1/100,000sec | |||
S/N Ratio | > 48dB(Auto Gain Off) | |||
BLC | On/Off | On/Off | On | On |
AGC | Auto/Manual/Off | Auto/Manual/Off | Auto | Auto |
White Balance | ATW/Manual/Auto | ATW/Manual/Auto | ATW | ATW |
Video Output | 1.0V P-P,75Ω | |||
Operating Temperature | -10 ~ 50℃(relative humidity: max95%) | |||
Power Voltage | DC12V±10% | |||
Suggest Power Adaptor | DC12V/1A | |||
Material | Plastic | |||
Dimension | 94(W) x94(H) x69(D)mm | |||
Weight | 300g | |||
Guarantee | 2 years | |||
Certifications:
Warranty
a.24 Months From Shipping Date;
b.24 Months, any defective product caused by non-artificial reason we will get repaired or replaced for free;
OEM & ODM Services
a. Including Label,Manual,Packages,Logo Printing and Special Outside Color and so on;
Payment Terms
a. Telegraphic Transfer (T/T)
b. Paypal
4% commission charges will be added into the amount;
Analog Dome Cameras
For more CCTV Cameras information,welcome to contact
Clark sales04 @ , Skype : Clark.kdsecurity
Website :
