IR Plastic Dome Camera 3.6mm / 6mm Fixed Lens 20m IR Range Security Camera System, Security Product
- Shenzhen
You May Like
-
2015 Burst Sells SONY CCD or CMOS Sensor Plastic Dome 2.8-12mm 2MP Vari-focal Lens/ Security Surveillance Camera
-
Kendom Promotion Hot in This Summer Plastic Dome Camera, Nice Design With Bottom Price CCD or CMOS Camera 700/800/1300TVL
-
CCTV Camera New Housing Weatherproof IP66 Bullet Camera 600/700/700WDR/800TVL/1.0/1.3Mega
-
CCTV Camera New Housing Weatherproof IP66 Bullet Camera 600/700/700WDR/800TVL/1.0/1.3Mega
-
Kendom New Casing Weatherproof IP66 Mini Bullet Camera 420/600/700/800TVL/1.0/1.3Mega For Outdoor Use CCTV Analog Camera
-
Kendom 700TVL/ 800TVL/ 1.0/1.3 MP Strong White Led Lamps Color NIght Vision CCTV Camera/ Alarm Camera/ Secure Your World
Product Details
| Place of Origin | Guangdong, China | Brand Name | Kendom | |
| Model Number | KD-ID3024PF | Type | Other, Analog Camera, Plastic Dome Camera | |
| Style | Dome Camera | Sensor | Other, CCD or CMOS | |
| Technology | Infrared | Special Features | Other, Plastic |
Product Description
IR Plastic Dome Camera 3.6mm / 6mm fixed lens 20m IR Range Security camera system, security product
Product Features:
1) CCD: 1/3” SONY CCD,
2) Resolution: 700/ 800/ 1300TVL
3) Lens: 3.6mm/6mm fixed lens,
4) Material: Plastic casing
5) IR Auto-open by CDS Control in Low illumination
Application Places:
Apply to the financial, supermarket, telecommunications, government, schools, airports, factories, hotels, museums and other places of requirement of high-definition.

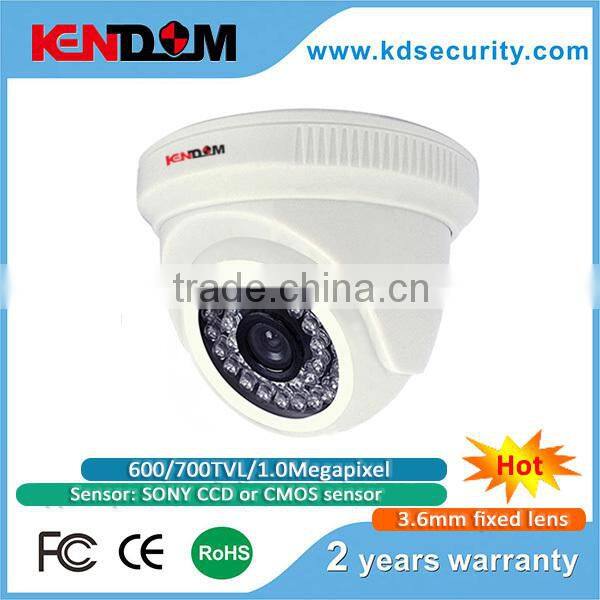

Picture Show:
Technical Parameter:
Model | KD-ID3024PF | |||
Horizontal Resolution | WDR 700TVL | 700TVL | 600TVL | 420TVL |
Effective Pixels (HxV) | PAL:976×582 | PAL:976×582 | PAL:752×582 | PAL:500×582 |
NTSC: 976x494 | NTSC: 976x494 | NTSC:768×494 | NTSC:510×492 | |
Signal System | PAL / NTSC | |||
Image Sensor | 1/3"SONY 662/663 CCD | 1/3"Sony 810/811 CCD | 1/3"Sony 638/639 CCD | 1/3"Sony 632/633 CCD |
Digital Signal Processor | SONY Effio-P DSP | SONY Effio-E DSP | Nextchip 2090 DSP | Sony 3142 DSP |
Mini Illumination | 0.02lux(IR on) 0.00lux(IR off) | 0.02lux(IR on) 0.00lux(IR off) | 0.05lux(IR on) 0.00lux(IR off) | 0.01lux(IR on) 0.00lux(IR off) |
Lens | 3.6/6mm fixed lens | |||
IR LEDs | 5X24PCS | |||
Night Vision | 20M | |||
OSD | OSD | OSD | OSD | - |
WDR | WDR | D-WDR | D-WDR | - |
DNR | 3D-DNR | 3D-DNR | 2D-DNR | - |
AES | PAL=1/50 ~1/100,000sec;NTSC=1/60 ~1/100,000sec | |||
S/N Ratio | > 48dB(Auto Gain Off) | |||
BLC | On/Off | On/Off | On | On |
AGC | Auto/Manual/Off | Auto/Manual/Off | Auto | Auto |
White Balance | ATW/Manual/Auto | ATW/Manual/Auto | ATW | ATW |
Video Output | 1.0V P-P,75Ω | |||
Operating Temperature | -10 ~ 50℃(relative humidity: max95%) | |||
Power Voltage | DC12V±10% | |||
Suggest Power Adaptor | DC12V/1A | |||
Material | Plastic | |||
Dimension | 94(W) x94(H) x69(D)mm | |||
Weight | 300g | |||
Guarantee | 2 years | |||
Certifications:
Warranty
a.24 Months From Shipping Date;
b.24 Months, any defective product caused by non-artificial reason we will get repaired or replaced for free;
OEM & ODM Services
a. Including Label,Manual,Packages,Logo Printing and Special Outside Color and so on;
Payment Terms
a. Telegraphic Transfer (T/T)
b. Paypal
4% commission charges will be added into the amount;
