High sensitivity accuracy Double Shear Beam Load Cell 100t
- 10000 Piece / Pieces per Month
- SHANGHAI
- T/T
You May Like
-
Stainless Steel Double Ended Shear Beam weight measuring sensors
-
Double Shear Beam Load Cell weight transducer for dosing hoppers
-
Pressure Transducer Load Cell 15t For Weighing Machine
-
Alloy Steel OIML Standard Railway scales sensor
-
Double Ended Shear Beam 20 Ton Alloy steel Load cell Sensor
-
Double Ended Shear Beam Load Cell for Vehicle-scale
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SILVANUS | |
| Model Number | QSK-A | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Analog Sensor |
Product Description

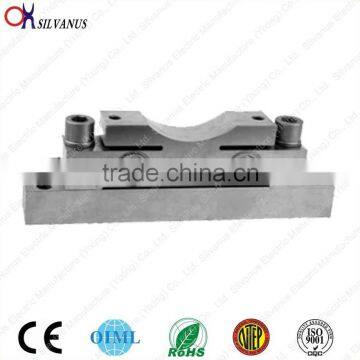

Double Ended Shear Beam Load Cell 100t (QSK-A)(0.5t~100t)
Load Cell (QSK-A) Features :
1.Bridge type double shear beam, unique floating bearing structure
2.Self-resetting , good side force resistance and shock resistance
3.Moisture-proof sealed , ideal for hostile environment
4.Simple to install , easy to use , good interchangeability
Load Cell (QSK-A) Application:
truck scales,rail scales,bin and hopper scales,etc.
Load Cell (QSK-A) Dimensions(mm)
Load Cell (QSK-A) Specifications
Emax(Max. capacity) | t | 0.5~100 | |
Sensitivity | mV/V | 2.0±0.002 | |
Accuracy class | C2 | C3 | |
Minimum load cell verification interval | Vmin | Emax/5000 | Emax/10000 |
Combined error | %F.S | ≤±0.030 | ≤±0.020 |
Creep | %F.S/30min | ≤±0.024 | ≤±0.016 |
Temperature effect on sensitivity | %F.S/10°C | ≤±0.017 | ≤±0.011 |
Temperature effect on zero | %F.S/10°C | ≤±0.023 | ≤±0.015 |
Zero balance | %F.S | ±1.0 | |
Input resistance | Ω | 750±10Ω | |
Output resistance | Ω | 703±5Ω | |
Service temperature range | °C | -30...+70 | |
Safe overload | %F.S | 150 | |
Ultimate overload | %F.S | 250 | |
Recommended excitation voltage | V | 5…15 | |
Insulation resistance | MΩ/50V | >5000 | |
Protection class | IP67;IP68 | ||
Load cell material | Alloy steel | ||
Cable length | m | 10m | |
Cable outer caliber | mm | Φ5 | |
Packaging & Delivery
Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
LETTER OF PATENT:
| Transportation | Routine |
| By car | 3 hours from Shanghai to Yixing |
| By high speed railway | 2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company. |
