Stainless Steel Single Shear Beam platform scale load cell
- 10000 Piece / Pieces per Month
- shanghai
- T/T Credit Card PayPal
You May Like
-
stainless steel Single Shear Beam weighbridge load cell
-
Single Shear Beam overload limiter sensor
-
Single Shear Beam electronic overload loadcell
-
Single Shear Beam crane overload weight sensor
-
Single Shear Beam bellow packing scale load cell sensor
Quality Choice
-
Single Shear Beam Load Cell for crane overload alerting
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SILVANUS | |
| Model Number | SBC | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Analog Sensor |
Product Description

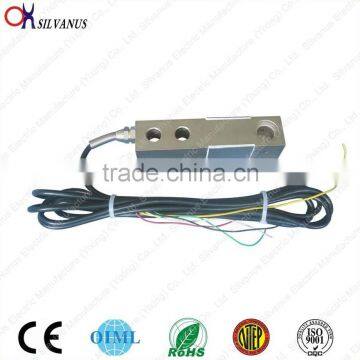

Stainless Steel Single Shear Beam platform scale load cell
SBC platform scale load cell Features :
1 Shear beam load cell ,one end fixed ,diverse loading ,and good seal structure
2 Self-centering ,simple to install ,easy to use ,good interchangeability
3 Suitable for various ultrathin electronic truck scale , one-track crane scale ,hopper scale ,etc.
SBC platform scale load cell Application :
Apply to electronic hook scales and various special weighing apparatus
SBC platform scale load cell Dimensions(mm):
SBC platform scale load cell Specifications:
Emax(Max. capacity) | t | 0.5~3 | |
Sensitivity | mV/V | 2.0±0.002 | |
Accuracy class |
| C2 | C3 |
Maximum number of verification intervals | nmax | 2000 | 3000 |
Minimum load cell verification interval | Vmin | Emax/2000 | Emax/3000 |
Combined error | %F.S | ≤±0.020 | ≤±0.015 |
Creep | %F.S/30min | ≤±0.020 | ≤±0.015 |
Temperature effect on sensitivity | %F.S/10°C | ≤±0.02 | ≤±0.017 |
Temperature effect on zero | %F.S/10°C | ≤±0.02 | ≤±0.017 |
Zero balance | %F.S | ±1.0 | |
Input resistance | Ω | 380±10Ω | |
Output resistance | Ω | 350±3Ω | |
Service temperature range | °C | -30...+70 | |
Safe overload | %F.S | 120 | |
Ultimate overload | %F.S | 200 | |
Recommended excitation voltage | V | 5…15 | |
Insulation resistance | MΩ/50V | >5000 | |
Protection class |
| IP66 | |
Load cell material |
| Alloy steel | |
Cable length | m | 5 | |
Cable outer caliber | mm | Φ5 | |
Packaging & Delivery
PACKAGE:
Delivery
Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
LETTER OF PATENT:
| Transportation | Routine |
| By car | 3 hours from Shanghai to Yixing |
| By high speed railway | 2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company. |
