Single Shear Beam micro bench scale load cell
- 10000 Piece / Pieces per Month
- shanghai
- T/T Credit Card PayPal
You May Like
-
Single Shear Beam low cost bench scale weight sensor
-
Single Shear Beam low cost scale weight sensor
Quality Choice
-
Single Shear Beam chinese load cell sensor
-
Single Shear Beam Electronic Platform Scale Load Cell
-
parallel beam Single Point Load Cell
-
Single Point Load Cell weighing sensor for bench scale
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SILVANUS | |
| Model Number | XBC | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Analog Sensor |
Product Description

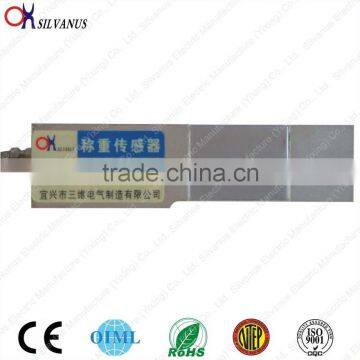

Single Shear Beam micro bench scale load cell
XBC Micro bench scale load cell Features :
1 Shear beam load cell ,one end fixed ,diverse loading ,and good seal structure
2 Self-centering ,simple to install ,easy to use ,good interchangeability
3 Suitable for various ultrathin electronic truck scale , one-track crane scale ,hopper scale ,etc.
XBC micro bench scale load cell Application :
Apply to electronic hook scales and various special weighing apparatus
XBC bench scale load cell Dimensions(mm):
XBC bench scale load cell Specifications:
Emax(Max. capacity) | t | 1~3 | |
Sensitivity | mV/V | 2.0±0.002 | |
Accuracy class |
| C2 | C3 |
Maximum number of verification intervals | nmax | 2000 | 3000 |
Minimum load cell verification interval | Vmin | Emax/2000 | Emax/3000 |
Combined error | %F.S | ≤±0.020 | ≤±0.015 |
Creep | %F.S/30min | ≤±0.020 | ≤±0.015 |
Temperature effect on sensitivity | %F.S/10°C | ≤±0.02 | ≤±0.017 |
Temperature effect on zero | %F.S/10°C | ≤±0.02 | ≤±0.017 |
Zero balance | %F.S | ±1.0 | |
Input resistance | Ω | 380±10Ω | |
Output resistance | Ω | 350±3Ω | |
Service temperature range | °C | -30...+70 | |
Safe overload | %F.S | 120 | |
Ultimate overload | %F.S | 200 | |
Recommended excitation voltage | V | 5…15 | |
Insulation resistance | MΩ/50V | >5000 | |
Protection class |
| IP66 | |
Load cell material |
| Alloy steel | |
Cable length | m | 5 | |
Cable outer caliber | mm | Φ5 | |
Packaging & Delivery
PACKAGE:
Delivery
Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
LETTER OF PATENT:
| Transportation | Routine |
| By car | 3 hours from Shanghai to Yixing |
| By high speed railway | 2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company. |
