Home > Products > Load Cells > Double Bending Beam stainless steel rail scales load cell

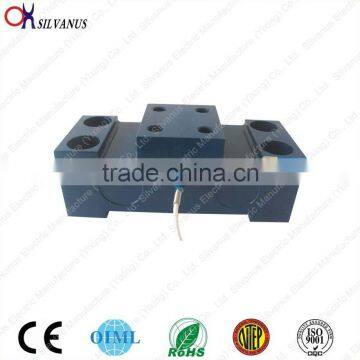

Double Bending Beam stainless steel rail scales load cell

FOB Price

USD $250 - $1,500 / Piece

5 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Silvanus
Model Number	QSE-A	Usage	Pressure Sensor
Theory	Resistance Sensor	Output	Analog Sensor

Product Description

Double Ended rail scales load cell

QSE-A Load Cell Features :

Planar load bearing bridge , reasonable structure

Simple and reliable load bearing ,easy to use ,simple to install

Widely used in consecutivecasting bale scale , middle bag scale ,steel ladle scale ,traveling crane scale and other weighing systems in steel industry.

QSE-A Load Cell Application :

truck scales,rail scales,bin and hopper scales,etc.

QSE-A Load Cell Dimensions(mm):

QSE-A Load Cell Specifications:

Emax(Max. capacity)	t	10~50
Sensitivity	mV/V	1.0±0.002
Accuracy class		D1
Maximum number of verification intervals	nmax	1000
Minimum load cell verification interval	Vmin	Emax/3000
Combined error	%F.S	≤±0.05
Creep	%F.S/30min	≤±0.05
Temperature effect on sensitivity	%F.S/10°C	≤±0.05
Temperature effect on zero	%F.S/10°C	≤±0.04
Zero balance	%F.S	±1.0
Input resistance	Ω	730±10Ω
Output resistance	Ω	703±5Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	150
Ultimate overload	%F.S	300
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP67
Load cell material		Alloy steel
Cable length	m	12m
Cable outer caliber	mm	Φ5

Packaging & Delivery

PACKAGE:

DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.

Our Company:

Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.

LETTER OF PATENT:

Transportation	Routine
By car	3 hours from Shanghai to Yixing
By high speed railway	2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company.
