Home > Products > Load Cells > Double Ended Shear Beam Load Cell for Vehicle-scale

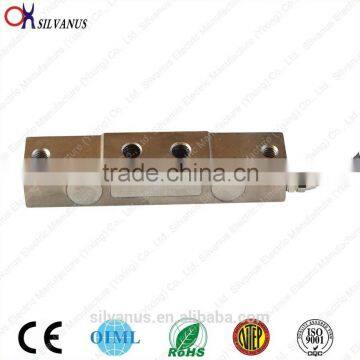

Double Ended Shear Beam Load Cell for Vehicle-scale

FOB Price

USD $95 - $190 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	SILVANUS
Model Number	QSN	Usage	Pressure Sensor
Theory	Resistance Sensor	Output	Analog Sensor

Product Description

Double Ended Shear Beam Load Cell for Vehicle-scale

QSN Load Cell Features:

1.Hermetically sealed

2. Max. Capacities :1t,2t

3. Planar load bearing bridge , reasonable structure

4.Simple and reliable load bearing , easy to use , simple to install

5. Widely used for steel ladle scale , travelling crane scale and other special weighing systems in steel industry

QSN Load Cell Application

truck scales,rail scales,bin and hopper scales,etc.

QSN Load Cell Dimensions(mm)

QSN Load Cell Specifications

Emax(Max. capacity)	t	1,2
Sensitivity	mV/V	2.0±0.002
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/5000	Emax/10000
Combined error	%F.S	≤±0.030	≤±0.020
Creep	%F.S/30min	≤±0.024	≤±0.016
Temperature effect on sensitivity	%F.S/10°C	≤±0.017	≤±0.011
Temperature effect on zero	%F.S/10°C	≤±0.023	≤±0.015
Zero balance	%F.S	±1.0
Input resistance	Ω	750±20Ω
Output resistance	Ω	702±3Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	150
Ultimate overload	%F.S	250
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP68
Load cell material		Alloy steel
Cable length	m	5
Cable outer caliber	mm	Φ5

Packaging & Delivery

PACKAGE:

Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
