Scald Protection Emergency Shower Eye Wash
- Beijing/Tianjin
 - Credit Card

You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Safety | |
| Pressure | Low Pressure | Power | Other, Self-Actuator, Self-Actuator | |
| Material | Stainless Steel | Temperature of Media | Normal Temperature | |
| Media | Water | Port Size | DN15 | |
| Place of Origin | Beijing, China | Model Number | SP68 | |
| Brand Name | Winning | Application | Other |
Product Description
Reaches to American Standard:
 Model  |
 Port Size  | Open~Close Temperature  | Maximum Operating Temperature  | Maximum Operating Pressure  | Dimension  | Net Weight  | Flow Rate (Cv)  | |||||
°C  | °F  | °C  | °F  | MPa  | PSI  | mm  | Inch  | g  | lb  | |||
SP68-100  | DN15  | 41--35  | 105.8--95  | 130  | 266  | 1.0  | 145  | Φ32*107  | 1.26*1.26*4.21  | 460  | 1.014  | 0.6  |
SP68-95  | DN15  | 37--32  | 98.6--89.6  | 130  | 266  | 1.0  | 145  | Φ32*107  | 1.26*1.26*4.21  | 460  | 1.014  | 0.6  |
SAFE GUARD! (Emergency Shower/Eye Wash)
Solar radiation or overheating caused by steam or electric tracing can cause extremely high temperatures at
the point of use, resulting in a safety hazard for plant personnel. When installed in safety showers, eye wash
stations and other locations exposed to the same source of overheating as the system, the SP68 will be
heated just as the pipe system. The valve will open to establish flow until the overtemperature water is
eliminated and it will then modulate close.

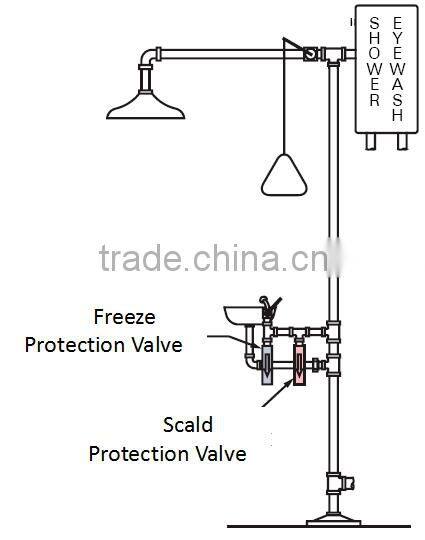

Emergency Shower Equipment
Scald Protection Principle: The SP95 will eliminate flow when the thermostatic actuator senses 37°C
(98.6 °F) and will remain open as long as the discharge water temperature is above 32°C(89.6°F). In standard flow, the actuator will sense ambient temperature to initiate flow and then responds to water temperature, in
reverse flow, the actuator will sense water temperature.
- SUS304 stainless steel body and thermal element
 - Sensitive to temperature only
 - Easy installation with pipe wrench
 - Discharges the minimum amount of water required to keep water temperature within safe limits

Production
Exhibition
Visitor


- Only one Chinese manufacturer reaches to American performance.
 - Reasonable policy to support distributor.
 - Professional technical support from pre-sale to after-sale.
