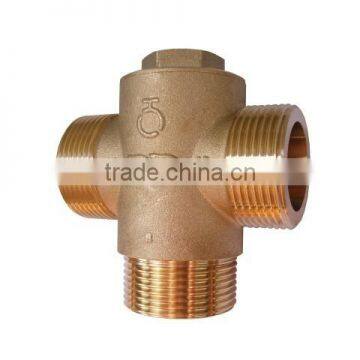

Thermostatic three-way control valve for boiler return bypass

Production Description:

1. The Winning Three-Way valve is equipped with a pre-set constant temperature control and

is used as mixer in return. For throttling of bypass between flow and return. Max. application temperature range till 100 °C

Operations:

 Winning TM temperature control valve is designed for 3-way mixing or diverting applications.

The models TM 01 and TM 02 incorporate a fixed bypass; The control temperature for path A --- AB: approx 45 °C
Installation of a regulating valve in the bypass between the boiler flow and return is recommended (see diagram)

 the models TM11 and TM12 are designed with a closing function on the bypass At a mixing temperature of approx 50 °C the bypass is closed (B-AB branch) and opens again at a temperature of approx 42 °C.

The installation of a regulating valve in the bypass is not necessary.

Application for boilder return bypass:

Specifications:

 Note:

1. The regulating valve no 6 should be set at 10% of the total water volume.
2. Unless noted, all set points listed have a +/-3 °C tolerance range.
3. Our technical staff will be more happy to adivse you other connections.
