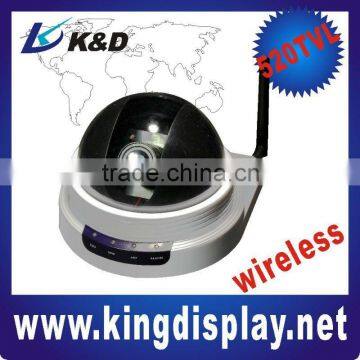

SIM Card IP Based CCTV Dome Camera

KD-DD60XD42-3G

420TVL, 0.5Lux (color)@F1.2

support 3G Network: EVDO( CDMA2000),WCDMA

KD-DD60XD52-3G

520TVL, 0.2Lux (color)@F1.2

support 3G Network: EVDO( CDMA2000),WCDMA

Image sensor

1/3" Sony Super HAD II CCD

Video compression

H.264 Main Profile @Level 3/MJPEG

Video Definition

PAL:176X144(QCIF),352*288(CIF),704*288(2CIF),704*576(D1)

NTSC:176X120(QCIF),352*240(CIF),704*240(2CIF),704*480(D1)

Video Frame Rate

PAL: 1-25fps NTSC:1-30fps

Video Bit rate

32Kbps~16Mbps

Audio Compression

G.726 , 32K bits

Audio Output

1channel, linear output,

Audio Input

1 channel external MIC interface( internal sound pick-up)

Video Output

With 1 channel CVBS analog video loop output

Title OSD

Supports channel name, date, and video stream information overlay; OSD location is adjustable

SD Card Interface

Support Video and Snapshots stored ,SD2.0 SDHC standard and maximum capacity:32GB

Network Interface

Self-adaption 10/100Mbps RJ45 port

Network protocol

TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP

Serial port

1 channel RS485

Alarm Input

1channel  input, NO/NC modes adjustable

Alarm Output

1 channel  output, 120VAC 1A/24VDC 1A

E-mail Alarm

Support

FTP Protocol

Support

RTSP Protocol

Support

Mobile Monitor

Supports smart mobile monitor that is based on  Windows Mobile, Symbian , Android and  iPhone platforms

Working Temperature

-10°C - +55°C

Working Humidity

0% - 90%

Power Input

DC12V/1.0A

Power Consumption

7W (MAX)

Dimension

164mm * 137mm * 113mm

Net weight

0.56kg
