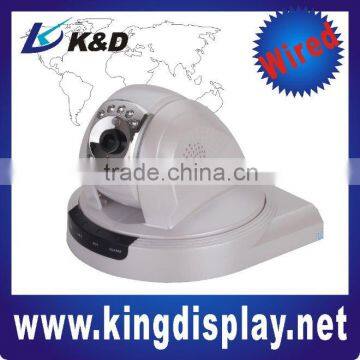

IR Pan and Tilt IP Camera

KD-DD61RC30-PT

Wired

KD-DD61RC30-PT-W

Wireless, Supports 802.11b/g protocol, 2.4GHZ, maximum wireless distance can be 100 meters,

Supports WEP,WPA,WPA2,

KD-DD61RC30-PT-3G

support 3G Network:EVDO( CDMA2000),WCDMA

Illumination

0.4Lux (Color)@F1.2; 0Lux(B/W)@IR  on

Image sensor

1/4 OV CMOS Sensor,

Lens

Fixed Lens 6mm, IR distance: 10m

Video compression

H.264 Main Profile @Level 3/MJPEG

IR function

Built- in 10 pcs IR led and IR-cut set, IR distance: 10m

PAN/ TILT

Angle: horizontal 0º---355º, vertical 0º—90º

Speed: horizontal 0º -15°/S,vertical 0º -15°/S

Video Definition

VGA:640*480,1-30f/s

QVGA:320*240,1-30f/s

QQVGA:160*128,1-30f/s

Video Frame Rate

PAL: 1-25fps NTSC:1-30fps

Video Bit rate

32Kbps~16Mbps

Audio Compression

G.726 , 32K bits

Audio Output

1channel, linear output,

Audio Input

1 channel external MIC interface( internal sound pick-up)

Video Output

With 1 channel CVBS analog video loop output

Title OSD

Supports channel name, date, and video stream information overlay; OSD location is adjustable

SD Card Interface

Support Video and Snapshots stored ,SD2.0 SDHC standard and maximum capacity:32GB

Network Interface

Self-adaption 10/100Mbps RJ45 port

Network protocol

TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP

Serial port

1 channel RS485

Alarm Input

1channel  input, NO/NC modes adjustable

Alarm Output

1 channel  output, 120VAC 1A/24VDC 1A

E-mail Alarm

Support

FTP Protocol

Support

RTSP Protocol

Support

Mobile Monitor

Supports smart mobile monitor that is based on  Windows Mobile, Symbian , Android and  iPhone platforms

Working Temperature

-10°C - +55°C

Working Humidity

0% - 90%

Power Input

DC12V/1.0A

Power Consumption

9W (MAX)

Dimension

Φ164mm *113mm

Net weight

0.6kg

Package

10pcs/carton, 13kg/carton, 930x270x365 mm
