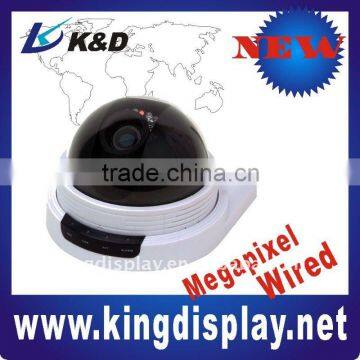

IR 3G dome IP Camera

KD-DD60RD42-3G

420TVL, support 3G Network,

KD-DD60RD52-3G

520TVL, support 3G Network,

Wireless Encryption

Supports WEP,WPA,WPA2

Image sensor

1/3" Sony Super HAD CCD

Resolution

420TVL / 520TVL

Illumination

0 Lux ( IR on)

LENS

Built-in Mic, Speaker, Buzzer,  fixed Lens 6mm

IR LED

Build in IR LED, IR distance: 10m.

Video Compression

H.264 Main Profile @Level 3/MJPEG

Video Definition

PAL:352*288(CIF),704*288(2CIF),704*576(D1);

NTSC:352*240(CIF),704*240(2CIF),704*480(D1)

Video Frame Rate

PAL: 1-25frames/secondNTSC:1-30frames/second

Video Parameters

Brightness, Hue, Contrast, Saturation, Image quality.

Streaming Format

Optional Video Streaming or Audio &Video composite Streaming

Video Compression Bit rate

32Kbps~16Mbps

Audio Input

1channel,linear input

Audio Compression

G.726

Audio Output

1channel,RCA interface, linear output

Supported Protocols

TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP, IPV4

System Interface

Build in Microphone, Speaker and Buzzer.

10M/100M self-adapting Ethernet port,

1 RS485 port (supports transparent protocols)

SD card (maximum 32GB)

Support RF remote controller(KD-NVC83WF)

Supports smart mobile monitor that is based on  Windows Mobile, Symbian and  iPhone platforms

Alarm Input

1 channel on/off input, supporting NO(normally open) or NC(normally close) sense.

Alarm Output

1 channel on/off output,120VAC 1A/24VDC 1A

Input Power Supply

DC 12V,1A

Maximum Power

Less than 6W

Operating Temperature

-10 ~ +55°C

Operating Humidity

RH85%MAX

System Requirements

Operation System: Microsoft Windows 98/ME/2000/XP/2003
Browser: Microsoft Internet Explorer 5.x or above

Dimension

164mm * 137mm * 113mm

Net weight

600g

Package

10pcs/carton, 13kg/carton, 930x270x365 mm
