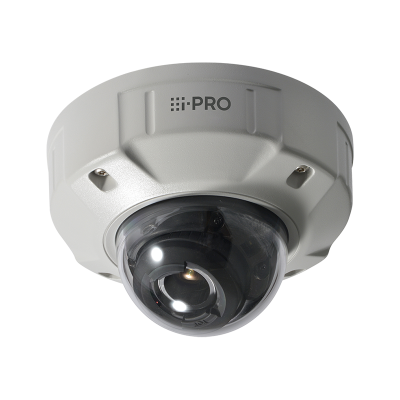

WV-S2531LTN i-PRO 2MP(1080p) Vandal Resistant Outdoor Dome Network Camera with tele lens

iA (intelligent Auto) H.265 Network Camera with tele lens

2MP (1080p) 1080p 60fps

iA (intelligent Auto)

Extreme Super Dynamic 144dB

Color night vision (0.001 to 0.015 lx)

H.265 Smart Coding

i-VMD License Bundled

Fiber Optic Media Converter Unit (Optional WV-S25F1)

Camera

COMPONENT SPECIFICATION

Image Sensor Approx. 1/3 type MOS image sensor

Minimum Illumination Color : 0.015 lx, BW : 0.008 lx

(F1.7, Maximum shutter : Off (1/30s), AGC : 11)

BW : 0 lx

(F1.7, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit)

Color : 0.001 lx, BW : 0.0005 lx

(F1.7, Maximum shutter : max. 16/30s, AGC : 11)

White Balance AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)

Shutter Speed 1/30 Fix to 1/10000 Fix

*1/30 Fix to 2/120 Fix is available during 30 fps mode only.

*1/60 Fix is available during 60 fps mode only.

Intelligent Auto On / Off

Super Dynamic On / Off, The level can be set in the range of 0 to 31.

Dynamic Range Max.144 dB (Super Dynamic : On, Level 31)

Adaptive Black Stretch The level can be set in the range of 0 to 255.

Back Light Compensation/High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off

(only when Super dynamic / Intelligent Auto : Off)

Fog Compensation On / Off (only when Intelligent Auto and Auto contrast adjust : Off)

Maximum Gain (AGC) The level can be set in the range of 0 to 11.

Color/BW (ICR) Off / On(IR Light Off) / On(IR Light On) / Auto1(IR Light Off) / Auto2(IR Light On) / Auto3(SCC)

IR LED Light High / Middle / Low / Off, Maximum irradiation distance : 40 m {Approx. 131 ft}

Digital Noise Reduction The level can be set in the range of 0 to 255.

Video Motion Detection (VMD) On / Off, 4 areas available

Intelligent VMD (i-VMD) Type 4 *Bundled License

Stabilizer On / Off (available only in the 30 fps mode)

Privacy Zone On / Off (up to 8 zones available)

Image Rotation 0 ° / 90 ° / 180 ° / 270 °

Camera Title (OSD) On / Off Up to 20 characters (alphanumeric characters, marks)

Zoom ratio 2.3 x (Motorized zoom / Auto Focus)

Lens

COMPONENT SPECIFICATION

Focal length 9.0 - 21 mm {11/32 inches - 13/16 inches}

Angular Field of View [16 : 9 mode] Horizontal : 14° (TELE) – 34° (WIDE)

Vertical : 8° (TELE) – 19° (WIDE)

[4 : 3 mode] Horizontal : 12° (TELE) – 28° (WIDE)

Vertical : 9° (TELE) – 21° (WIDE)

Maximum Aperture Ratio 1 : 1.7 (WIDE) – 1 : 3.0 (TELE)

Focusing Range 2.0 m {78-13/16 inches} – ∞

Adjusting Angle

COMPONENT SPECIFICATION

Adjusting Angle Horizontal : ±180°, Vertical : -30 to +85°, Yaw : ±100°

Browser GUI

COMPONENT SPECIFICATION

Camera Control Brightness, AUX On / Off

Audio Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High

Audio Output : On / Off Volume adjustment : Low / Middle / High

GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

Network

COMPONENT SPECIFICATION

Network IF 10Base-T / 100Base-TX, RJ45 connector

Resolution H.265/ H.264/ JPEG (MJPEG) ?2 mega pixel [16 : 9] (30/60 fps)

1,920 x 1,080 / 1,280 x 720 / 640 x 360 / 320 x 180

?3 mega pixel [4 : 3] (30 fps)

2,048 x 1,536*5 / 1,280 x 960 / 800 x 600 / 640 x 480 / 400 x 300 / 320 x 240

H.265/H.264 [Transmission Mode]

Constant bit rate / VBR / Frame rate / Best effort

[Transmission Type]

Unicast / Multicast

JPEG [Image Quality]

10 steps

Smart Coding Smart Facial Coding : On (Smart Facial Coding*) / On (Auto VIQS) / Off

*Smart Facial Coding is only available with Stream(1).

GOP (Group of pictures) : On (Advanced)* / On (Mid) / On (Low) / Off

*On(Advanced) is only available with H.265.

Audio Compression G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps

AAC-LC : 64 kbps / 96 kbps / 128 kbps

Audio Transmission Mode Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)

Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP,

SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ

IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP,

SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP,

ARP, IEEE 802.1X, DiffServ

No. of Simultaneous Users Up to 14 users (Depends on network conditions)

SDXC/SDHC/SD Memory Card H.265 / H.264 recording :

Manual REC / Alarm REC (Pre/Post) / Schedule REC /

Backup upon network failure

JPEG recording :

Manual REC / Alarm REC (Pre/Post) / Backup upon network failure

Compatible SDXC/SDHC/SD Memory Card :

Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256GB** model

*SDHC card, ** SDXC card (except miniSD card and microSD card)

Mobile Terminal Compatibility iPad, iPhone, Android? terminals

Alarm

COMPONENT SPECIFICATION

Alarm Source 3 terminals input, VMD alarm*8, Command alarm, Audio detection alarm

Alarm Actions SDXC/SDHC/SD memory recording, E-mail notication,

HTTP alarm notication Indication on browser, FTP image transfer,

Panasonic alarm protocol output

Input/Output

COMPONENT SPECIFICATION

Monitor Output (for Adjustment) VBS : 1.0 V [p-p] / 75 Ω, composite, ?3.5 mm mini jack

An NTSC or PAL signal can be outputted from camera

Audio input ?3.5 mm stereo mini jack

Input impedance: Approx. 2 kΩ (unbalanced)

(Applicable microphone : Plug-in power type)

Supply voltage : 2.5 V ±0.5 V

Audio Output ?3.5 mm stereo mini jack (monaural output)

Output impedance : Approx. 600 Ω (unbalanced)

External I/O Terminals ALARM IN 1 (Black & white input, Auto time adjustment input) (x1),

ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1)

General

COMPONENT SPECIFICATION

Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1

EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024

Power Source and Power Consumption DC power supply : DC12 V 750 mA, Approx. 9 W

PoE (IEEE802.3af compliant) Device :

DC48 V 195 mA, Approx. 9.4 W (Class 0 device)

Ambient Operating Temperature IR LED : On -40 °C to +50 °C (-40 °F to 122 °F), IR LED : Off -40 °C to +60 °C (-40 °F to 140 °F)

(Power On range : –30 °C to +60 °C {–22 °F to 140 °F})

Ambient Operating Humidity 10 to 100 % (no condensation)

Water and Dust Resistance IP66, IEC60529 measuring standard compatible, Type 4X(UL50),

NEMA 4X compliant

Shock Resistance Compliant with 50J IEC60068-2-75, IK10 (IEC 62262)

Dimensions * Installing using the base bracket ?164 mm x 139 mm (H) {?6-15/32 inches x 5-15/32 inches (H)}

Dome radius 42 mm {1-21/32 inches}

Mass (approx.) When using base bracket : Approx. 1.6 kg {3.53 lbs}

When using attachment plate : Approx. 1.2 kg {2.65 lbs}

Finish Main body : Aluminum die cast, Light gray

Dome section : Clear polycarbonate resin (ClearSight coating)
