Exports to Europe Cryogenic Oxygen/nitrogen Cylinder
- Qingdao Tianjin
- T/T Credit Card
You May Like
-
Pressure Vessel / Air Tank / Gas Tank Cryogenic Liquid Storage Tanks
-
Cryogenic Liquid Nitrogen Storage Tank/pressure Vessel
-
LNG Liquid Nitrogen Liquid Oxygen Cryogenic Chemical Storage Equipment
-
LPG Storage Cryogenic Tank/tanks
-
Liquid Gas Liquid Nitrogen Liquid Oxygen Cryogenic Pressure Vessel
-
Liquid Nitrogen Liquid Gas Cylinder for Industrial
Product Details
| Condition | New | Capacity | 5.26 stere | |
| Place of Origin | China | Brand Name | Bidragon | |
| Model Number | BDB-5-0.8/1.6 | Dimension(L*W*H) | DN1912*5280 | |
| Weight | 3725kgs4450kgs | Certification | CE, ASME, ISO | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

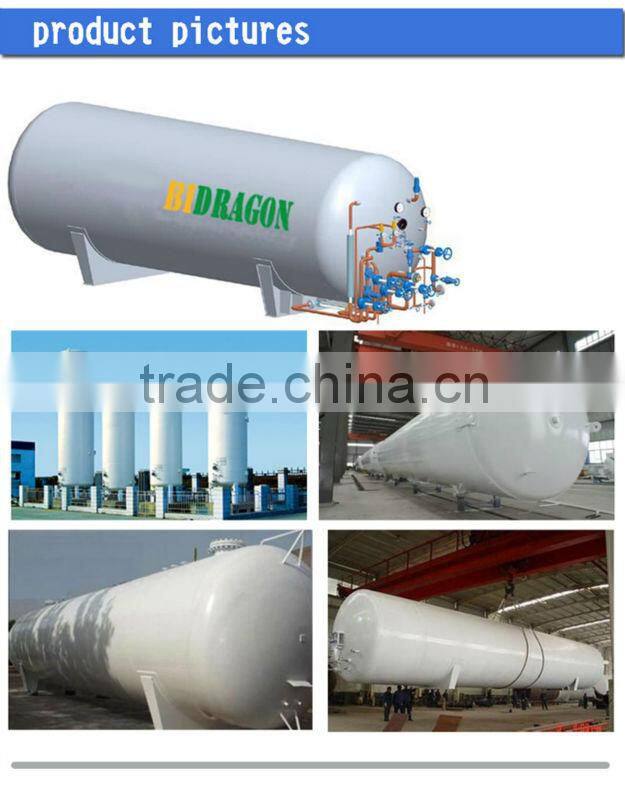

Exports to Europe cryogenic oxygen/nitrogen cylinder
Beijing Double Dragon International Industrial & Mining Machinery Co., Ltd (also known as Bidragon) is located in Beijing. We are a high and new technology enterprise, which is professionally engaged in producing cryogenic tanks, liquid oxygen tanks, liquid nitrogen tank, carbon dioxide tanks, LNG storage tanks and Dewar.
Cryogenic Vessel is essentially a double walled cylindrical tank, annular space between inner and outer vessel is filled with insulating material and evacuated to a high vacuum to achieve minimum evaporation losses. The cold converter is fitted with pressure building arrangement with automatic pressure build - up regulator.
Performance:
1. Adopt double-wall vacuum powder thermal insulation technology. Superior quality control system, workmanship requirement and imported key components ensure the reliable and stable quality.
2. Apply high-quality ultra-low temperature thermal engineering expansive perlite as filling. Take helium-spectrum leakage test for complete cryogenic liquid tank. Good thermal-insulating effect, low evaporation loss and long life time.
3. Imported paint makes appearance more beautiful and longer anti-corrosion time.
4. Compact tank structure, advanced piping and flow-process design make operation simpler and safer as well as maintainance and repair easily.
5. Two types: Vertical type and horizontal type. We can design and manufacture cryogenic liquid storage tanks in various volume and pressure grade besides our standard products.
Some products technical parameter:
Model | Storage Medium | Effective Volume | Max Working Pressure | Tank Weight | Boundary Dimension |
CFL-5/0.8 | LO2,LN2,LAr,LNG | 5M3 | 0.8MPa | 4375kgs | 1916mm*5141mm |
CFL-5/1.6 | LO2,LN2,LAr,LNG | 5M3 | 1.6MPa | 4950kgs | 1916mm*5141mm |
CFL-10/0.8 | LO2,LN2,LAr,LNG | 10M3 | 0.8MPa | 6930kgs | 2520mm*5461mm |
CFL-10/1.6 | LO2,LN2,LAr,LNG | 10M3 | 1.6MPa | 8000kgs | 2520mm*5461mm |
CFL-5/2.16 | LCO2 | 5M3 | 2.16MPa | 5469kgs | 1919mm*5065mm |
CFL-10/2.16 | LCO2 | 10M3 | 2.16MPa | 9015kgs | 2520mm*5361mm |

Our product includes:
1. Cryogenic Stationary Tank: 5m3 ~300m3
2. Cryogenic liquid movable tank, cryogenic trailer tank: 5m3~50m3
3.Cryogenic Trailer and Truck: 5m3~40m3
4. Cryogenic ISO tank container: 10ft, 12ft, 20ft, 40ft
5. Cryogenic Offshaore Tank: 10ft, 12ft
6: Cryogenic Handy Tank: 1000L, 2000L,3000L, 4000L, 5000L
7.Cryogenic cylinders: 175L, 195L,210L,450L
8. LNG vehicle cylinders
9. LNG gas supply system for marine
10. LNG vaporization equipment
11. LNG skid-mounted air filling equipment
12. Industrial Gas and LNG filling stations.
- During 5 days after signing contract by both parts, the seller will provide ichnography, construction basal chart and machine installation chart.
- The seller shall provide the Certificate and operating instruction of the equipment hereof and will send the engineer to guide installation of the machine if necessary.
- Quality Guarantee: The guarantee period for mainframe is one year (excluding the quick wear parts).
Some Questions From Customers:
Specifications: Gas Storage Tank (LAR/LIN/LOX/LCO2)
Medium:LAR/LIN/LOX/LCO2
Capacity: 5-2000M3
Pressure:0.8/1.6/1.75/2.2MPA
Manufacture standard: GB150/ASME/EN
CERTIFICATE DOCS WILL BE HANDOVER THE FOLLOWING DOCS WITH THE TANK:
(1) Certificate of supervision and inspection.
(2) Copy of nameplate;
(3) Certificate of product quality;
(4) Product Certificate;
(5) Product data Sheet;
Contact infrmation:
Cellphone&Viber&whatsapp&wechat: 86-13213283199
skype: bidragon2011
QQ: 1993732766
