Cryogenic Liquid Oxygen Storage Tank
- China main ports
- T/T Credit Card
You May Like
-
LNG(liquefied Natural Gas) Cryogenic Storage Vessel for Skid Mounted LNG Station
-
LNG(liquefied Natural Gas) Cryogenic Cylinder Storage Tanks for Sale
-
5000 L Liquid Oxygen Storage Vessel/cryogenic Tank
-
1.6Mpa Liquid Oxygen LO2 Cryogenic Tanks Cryogenic Vessels Manufacturer
-
Vertical Cryogenic Liquid Oxygen Liquid Nitrogen Storage Tank for Sale
-
5000 L Cryogenic Tank/liquid Argon Tank /liquid Nature Gas Tank
Product Details
| Condition | New | Capacity | 5.26 stere | |
| Place of Origin | China | Brand Name | Bidragon | |
| Model Number | BDB-5-0.8/1.6 | Dimension(L*W*H) | DN1912*5280 | |
| Weight | 3725kgs | Certification | CE, ASME, ISO | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

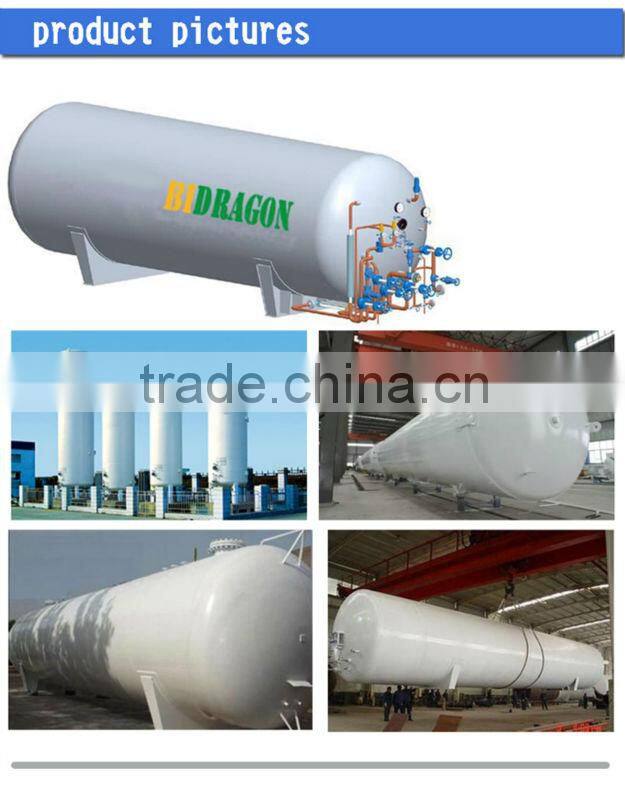

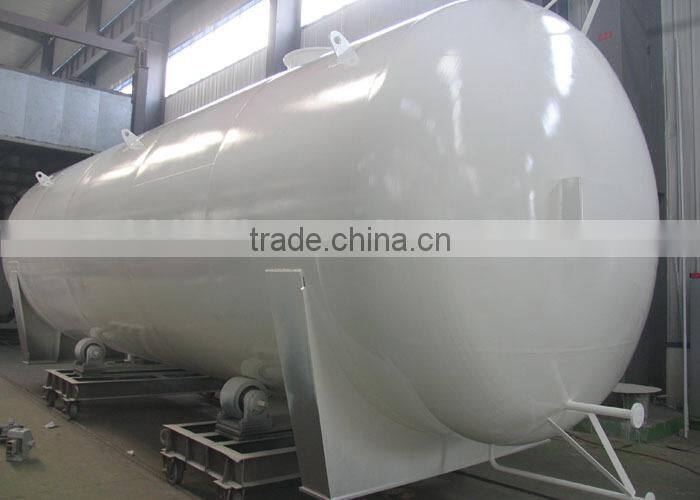

Cryogenic Liquid Oxygen Storage Tank
Performance:
1. Adopt double-wall vacuum powder thermal insulation technology. Superior quality control system, workmanship requirement and imported key components ensure the reliable and stable quality.
2. Apply high-quality ultra-low temperature thermal engineering expansive perlite as filling. Take helium-spectrum leakage test for complete cryogenic liquid tank. Good thermal-insulating effect, low evaporation loss and long life time.
3. Imported paint makes appearance more beautiful and longer anti-corrosion time.
4. Compact tank structure, advanced piping and flow-process design make operation simpler and safer as well as maintainance and repair easily.
5. Two types: Vertical type and horizontal type. We can design and manufacture cryogenic liquid storage tanks in various volume and pressure grade besides our standard products.
Main technical parameter:
1 | Available max. volume | 5m3 10m3 15 m3 20 m3 30 m3 50 m3 100 m3 |
2 | working pressure | 8bar,16bar, 22bar |
3 | Min Design temperature | -196°C |
4 | Max Design temperature | +50 °C |
5 | Total Volume | 5.26m3, |
6 | Effective volume | 5m3 |
7 | Filling Ratio | 0.95 |
8 | Inner tank Material | 0Cr18Ni9 |
9 | Outside tank Material | Q345-B |
10 | Diameter | 1900mm |
11 | Length | 5165mm |
12 | Empty weight | ~4015kg |
13 | Suitable | LIN, LOX, LAr,LNG |
14 | Insulation method | vacuum powder or high vacuum multi-layer wrap insulation |
15 | Medium | liquid argon/ nature gas/ oxygen/nitrogen/ carbon dioxide |
1. During 5 days after signing contract by both parts, the seller will provide ichnography, construction basal chart and machine installation chart.
2. The seller shall provide the Certificate and operating instruction of the equipment hereof and will send the engineer to guide installation of the machine if necessary.
3. Quality Guarantee: The guarantee period for mainframe is one year (excluding the quick wear parts).
Some Questions From Customers:
Question1: What is the operation pressure of cryogenic storage tank?
Answer: Cryogenic Storage: 8 bar or 16 bar or customers required
Handy Tank: 16Bar, 24bar, 34Bar
Cryogenic Cylinder: 16Bar, 24bar, 34Bar
Question2: What is the design code?
Answer: It can be Chinese GB code or ASME code
Question 3: Which department take lead the inspection?
Answer: China pressure bureau will take lead for GB code and LLOYD-UK take lead for ASME code
Question4: Can Bidragon provide complete filling line?
Answer: Yes, Bidragon can provide complete filling line for Nitrogen/Oxygen/Argen/Carbon Dioxide/LNG
Question5: Which filling line can Bidragon provide?
Answer: Bidragon can provide filling line for single gas or mixed gas.
Question6: Which equipments are included in filling line?
Answer: Cryogenic ISO tank container, cryogenic storage tank, filling pump, filling Vaporizer, filling scaffold.

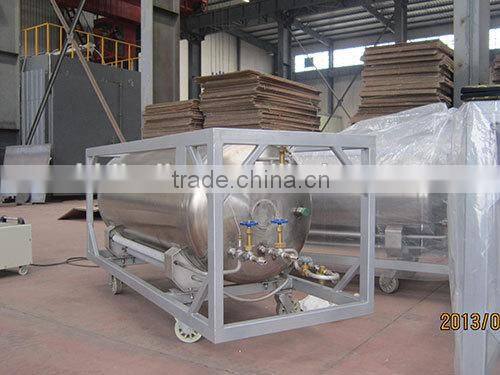

Question7: Can Bidragon handy tank provide continuous gas for use?
Answer: Yes, our handy tank can provide continuous gas for use.
Question8: What is Bidragon handy tank size?
Answer: It is 1000L, 2000L, 3000L, 4000L, 5000L.
Question9: What is Bidragon cryogenic cylinder size?
Answer: It is 175L, 195L, 210L, 450L.
Question10: Is vaporizer needed in Bidragon cryogenic cylinder and handy tank?
Answer: No, our cryogenic cylinder and handy tank can provide continuous gas for use directly.
Question11: What is Bidragon cryogenic ISO tank container size?
Answer: 10ft, 12ft, 20ft and 40ft.
Question12: What is pressure of Bidragon cryogenic ISO tank container?
Answer: it is 7.5Bar, 16Bar, 18Bar, 24Bar.
Question13: Does Bidragon ISO tank container include pump?
Answer: it can include pump if client requires.
Question14: What is max. pressure of Bidragon cryogenic pump?
Answer: 700Bar.
Question15: What is Bidragon arrangement for filling pump and vaporizer?
Answer: Bidragon special design and fabricate filling pump and vaporizer into one skid to avoid weld at jobsite.
Contact infrmation:
Ms. Jane Lee
Sales Manager
Cell: 0086-0372-2190222
MP: 0086-13213263202
Fax: 0086-372-2190333
Skype: bidragon2014 & Whatsapp:+86 13213263202
Email: sales2014 at
