5CBM to 200CBM LNG Storage Tank ,LNG Cryogenic Vessels
- China mail port
- T/T Credit Card PayPal
You May Like
-
Stainless Steel Can Food Steam Autoclave
-
Stainless Steel Pharmaceutical Steam Autoclave
-
Stainless Steel Food Industry Steam Autoclave
-
Stainless Steel Double Layer Hot Water Autoclave Sterilizer
-
Bidragon Stainless Steel Steam Autoclave Sterilizer
-
Stainless Steel Steam Autoclave Sterilizer for Packaged Food
Product Details
| Condition | New | Place of Origin | Hebei, China | |
| Brand Name | bidragon | Model Number | CFW-5/1.6 | |
| Dimension(L*W*H) | according to the models | Capacity | 5-200cbm | |
| Weight | according to the models | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

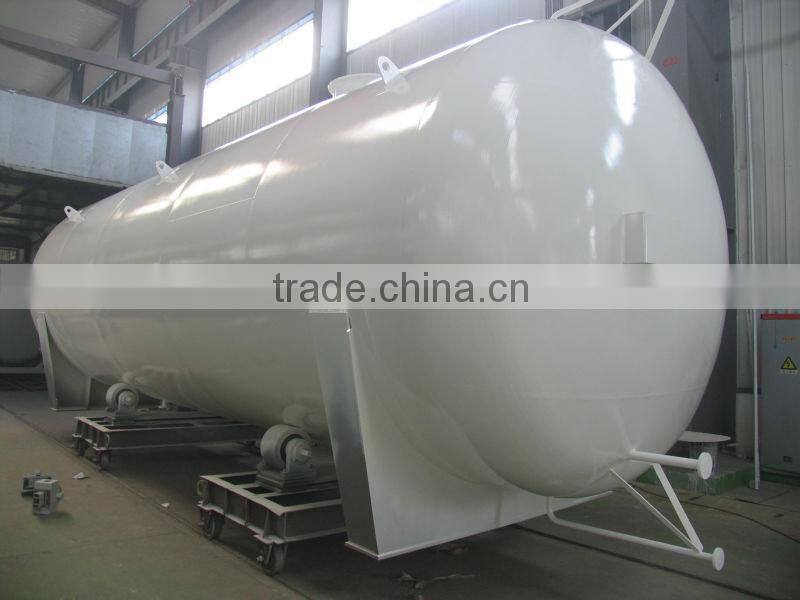

5CBM to 200CBM LNG storage tank ,LNG cryogenic vessels
We Bidragon engaged in manufacturing, supplying and exporting of a commendable range of LNG Cryogenic Storage Tank.which with dimensions of 5
Cryogenic vessels are tanks designed to store materials at temperatures below -150ï½° Fahrenheit. They can be used to safely store a variety of products, including oxygen, argon, nitrogen, helium, and natural gas. Cryogenic pressure vessels can be made out of quality stainless steel or carbon shells. These cryogenic vessels can be made with single, double, or triple wall to provide the best insulation for your specific requirements. Available in low and high pressure models, cryogenic vessels are easy to operate and can be built to almost any capacity. The cryogenic vessels feature automated pressure-building circuitry and standard safety and control equipment. Cryogenic vessels are built with liquid level indicators so you know exactly how much is stored inside your vessel while vacuum and pressure gauges provide constant monitoring of conditions inside of your tank. Release valves and other safety equipment help to ensure that the cryogenic vessels operate in accordance with safety standards. We can manufacture both horizontal and vertical cryogenic tanks to meet the needs of all workplaces.
- Adiabatic method: vacuum powder insulation
- Effective volume:5-200CBM
- Working pressure : 0.6MPa ,0.8MPa,1.2MPa,1.6 MPa , Other specifications can be designed according to customer need
- Medium:LNG
- Style: vertical type and horizontal type
Quick Details:
Model | Storage Medium | Effective Volume | Max Working Pressure | Tank Weight | Boundary Dimension |
CFL-5/0.8 | LO2,LN2,LAr,LNG | 5M3 | 0.8MPa | 4375kgs | 1916mm*5141mm |
CFL-5/1.6 | LO2,LN2,LAr,LNG | 5M3 | 1.6MPa | 4950kgs | 1916mm*5141mm |
CFL-10/0.8 | LO2,LN2,LAr,LNG | 10M3 | 0.8MPa | 6930kgs | 2520mm*5461mm |
CFL-10/1.6 | LO2,LN2,LAr,LNG | 10M3 | 1.6MPa | 8000kgs | 2520mm*5461mm |
CFL-5/2.16 | LCO2 | 5M3 | 2.16MPa | 5469kgs | 1919mm*5065mm |
CFL-10/2.16 | LCO2 | 10M3 | 2.16MPa | 9015kgs | 2520mm*5361mm |
Application:

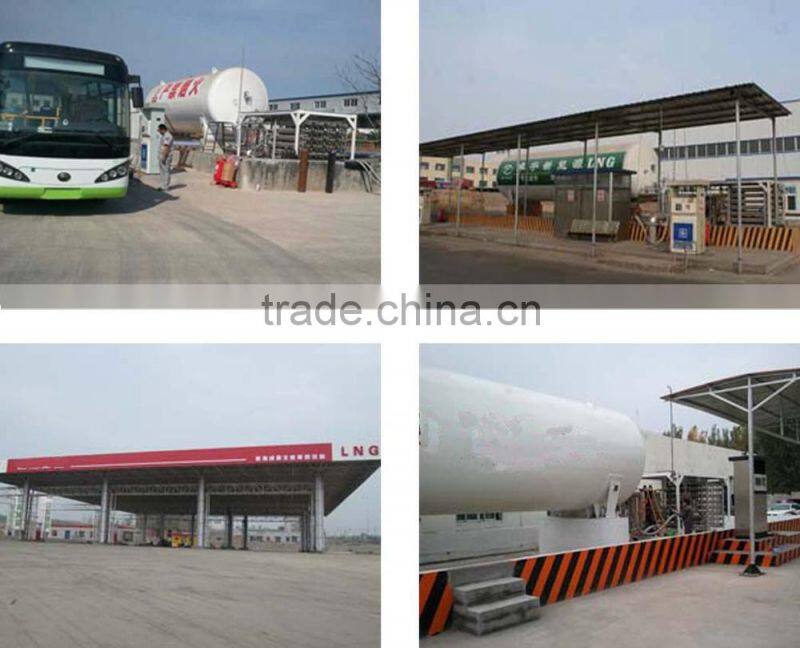

Widely used in LO2,LN2,LAr,LNG vaporizing station , peak-shaving station ,gas station, Liquefaction plants and so on.
Any more questions,please sent inquiry below!!!
